Attach Multi-Coupler and Single Point Latching

IMPORTANT:

H90927
H90927-UN-31MAR10

H90928
H90928-UN-28FEB08

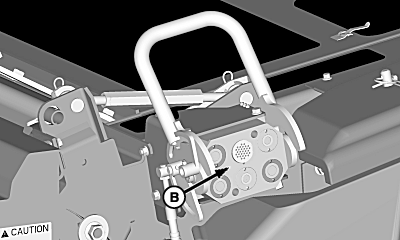

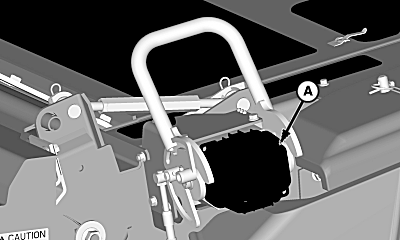

A - Cover

B - Multi-Coupler Face

Do not actuate latch pins with header on ground. If multi-coupler must be actuated with header on ground, unhook cable from handle.

Remove cover (A) and clean multi-coupler face (B).

H70035
H70035-UN-19SEP01

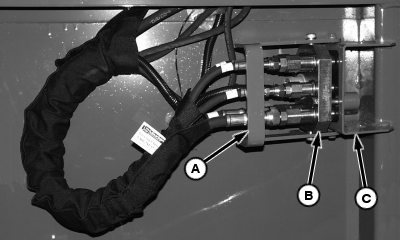

A - Handle

B - Multi-Coupler

C - Storage Bracket

Open handle (A) and remove multi-coupler (B) from storage bracket (C).

NOTE:

H82378
H82378-UN-07FEB05

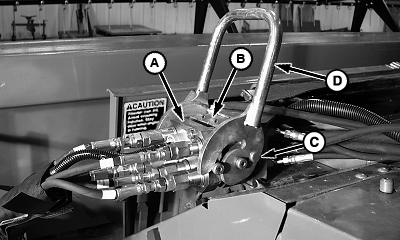

A - Multi-Coupler

B - Receptacle

C - Button Lock

D - Handle

To prevent damage to latching cable, a shear screw is attached to the handle. Attempts to actuate latching pins with header on ground results in screw shearing. (See Extra Shear Screw Location later in this section.)

Install multi-coupler (A) onto receptacle (B).

Pull and hold button lock (C) to close handle (D).

H87894
H87894-UN-19APR07

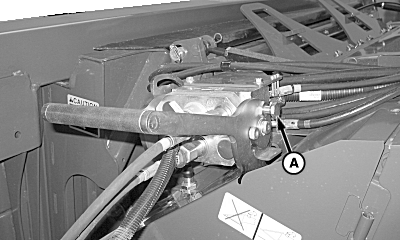

A - Button Lock

IMPORTANT: Failure to close multi-coupler fully so button lock can engage could result in header falling off while harvesting or transporting.

When multi-coupler handle is fully closed, button lock (A) automatically locks couplers together.

NOTE:

H81307
H81307-UN-28JUN04

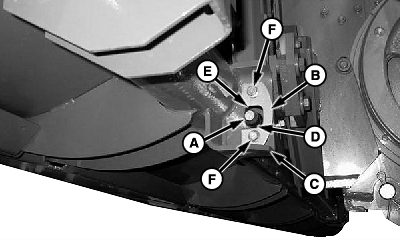

Inside Latch Plate (M10 Cap Screws)

H81308
H81308-UN-28JUN04

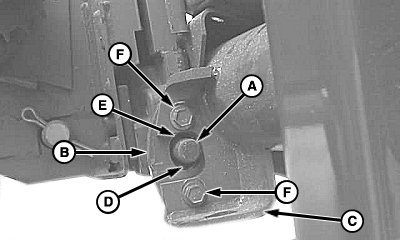

Outside Latch Plate (M12 Cap Screws)

A - Latch Pin

B - Latching Plate

C - Bottom Bracket

D - Gap

E - Top Of Plate

F - Cap Screws

With header attached, latch pins must move freely through latch plate holes. If latch pins do not extend through latch plates, make sure that latching plates on header are properly adjusted.

Latch pins (A) must move freely through latch plate holes in header when multi-coupler is latched. Latch plate (B) must make contact with bracket (C). Less clearance (D) must be maintained between bottom of plate and pin rather than top of plate (E) and pin. This may require latch plate to be flipped.

If adjustment is needed: Remove cap screws (F), flip plate (D) end for end and reinstall.

Tighten cap screws to M10 or M12 specification.

Item Measurement Specification
Inside Latch Plate (M10 Cap Screws) Torque 80 N·m (60 lb-ft)

Item Measurement Specification
Outside Latch Plate (M12 Cap Screws) Torque 130 N·m (96 lb-ft)

H74305
H74305-UN-18NOV02

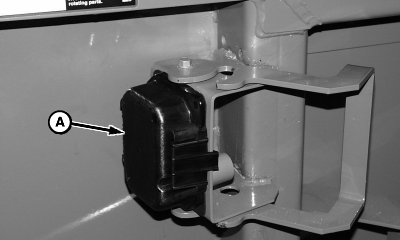

A - Cover

Install multi-coupler cover (A) on platform storage position.

Remove telescopic shaft from storage position and install onto feeder house backshaft, making sure quick attach collar locks fully.
