Single Point Latching—Adjusting

NOTE:

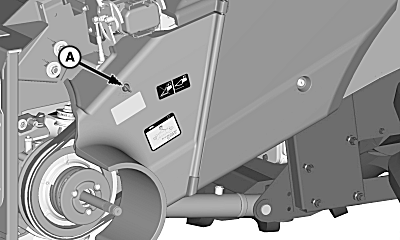

H90929
H90929-UN-28FEB08

H90930
H90930-UN-28FEB08

A - Shield

B - Jam Nuts

Contour-Master Feeder House: Adjustments must only be made to cable at multi-coupler handle.

Open left-hand feeder house shield (A).

Loosen cable jam nuts (B).

IMPORTANT: Verify handle is against stop on multi-coupler. Failure to verify that handle is against stop results in inaccurate pin dimensions and could result in header falling off while harvesting or transporting.

Rest multi-coupler handle against stop.

NOTE:

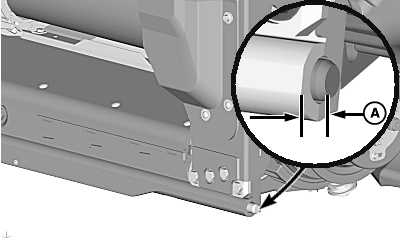

H90931
H90931-UN-05MAR08

Left-Hand Latching Pin

A - Dimension

Moving cable “up” in bracket pulls pin farther in.

Moving cable “down” in bracket pushes pin farther out.

Adjust cable in bracket as needed for proper pin adjustment:

  • Left-hand latching pin must be flush to +/- 2 mm (A).

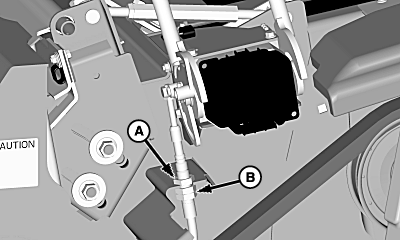

H90932
H90932-UN-28FEB08

A - Top Jam Nut

B - Bottom Jam Nut

Hold bottom jam nut (B) and tighten top jam nut (A).

IMPORTANT:

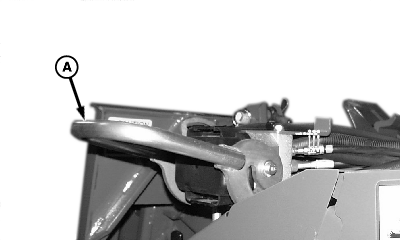

H81287
H81287-UN-23JUN04

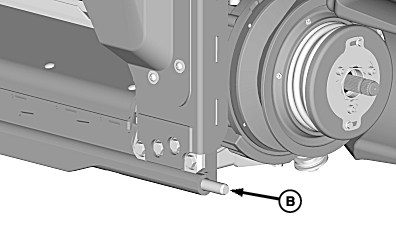

H90933
H90933-UN-28FEB08

A - Multi-Coupler Handle

B - Pins

Failure to verify that pins are set to specified dimensions could result in header falling off while harvesting or transporting.

Fully lower multi-coupler handle (A) and verify pins (B) (both sides) are set to specification. Readjust if not set to specification.

ItemMeasurementSpecification
Feeder House PinsDistance45—52 mm (1-3/4 in. — 2 in.)

OUO6075,0000013-19-20080625
