Cleaning Out Machine (Periodic)


Important Notes

The machine must be inspected periodically throughout the harvest day. Buildup of crop material and other debris must be removed to ensure proper machine function and to reduce the risk of fire.

This section shows primary areas of the machine that require periodic inspection and cleaning. Frequency of inspections and cleanings vary depending on a number of factors, including operating conditions, machine settings, crop conditions, operating speeds, and weather conditions, particularly dry, hot, and windy conditions. Various photographs show accumulations of crop material and other debris prior to cleaning. This was allowed for illustrative purposes only.

Primary areas that need inspection and cleaning are:

  • Engine Compartment
  • Pulleys
  • Shields and Ledges
  • Wiring Harnesses and Hydraulic Hoses
  • Transmission

While there are other areas that require regular cleaning, these areas provide the greatest impact on fire prevention. Using compressed air can make the job of keeping these areas clean much easier.

Harvesting certain crops can cause special issues. Some crops are very “sticky” and it is often more difficult to clean the machine when harvesting these crops. Examples of these crops include sunflower, canola, and safflower. Take special care in cleaning the machine when harvesting these crops.

Regular and thorough cleaning of machine combined with other routine maintenance procedures listed in the Operator’s Manual greatly reduce the risk of fire, chance of costly downtime, and improve machine performance.

Always follow all safety procedures posted on the machine and in the Operator’s Manual. Before carrying out any inspection or cleaning, always shut OFF engine, set parking brake, and remove key.


Engine Compartment

H90343
H90343-UN-03DEC07

H90344
H90344-UN-03DEC07

H90345
H90345-UN-03DEC07

H90346
H90346-UN-03DEC07

H90347
H90347-UN-03DEC07

H90348
H90348-UN-03DEC07

Crop material and other debris can accumulate in engine compartment. Direction of wind, type of crop, and crop moisture content can all have an effect on where and how much crop material and debris can accumulate. Inspect and clean engine compartment frequently throughout the harvest day. Primary areas that must be inspected and cleaned are:

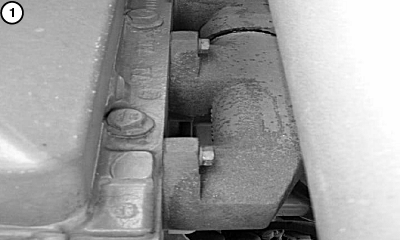

  1. Exhaust Manifold

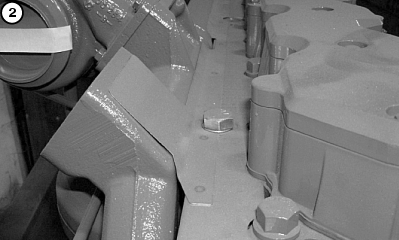

  2. Manifold Shield

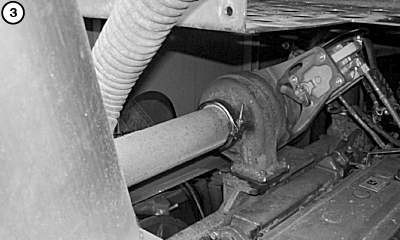

  3. Turbocharger

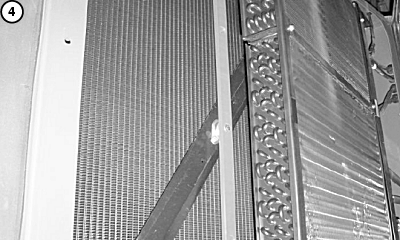

  4. Engine Cooling Package

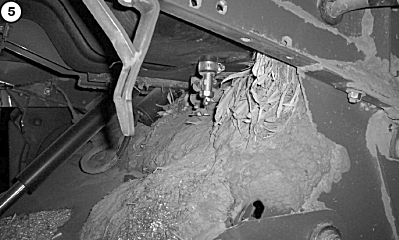

  5. Underneath Fuel Tank

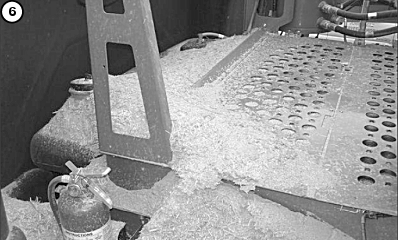

  6. On Top of Fuel Tank

Pulleys

H90349
H90349-UN-03DEC07

H90350
H90350-UN-03DEC07

H90351
H90351-UN-03DEC07

H90352
H90352-UN-03DEC07

Crop material and other debris may accumulate inside and around pulleys. Inspect and clean these areas periodically throughout the harvest day. Some examples of areas to inspect and clean are shown.

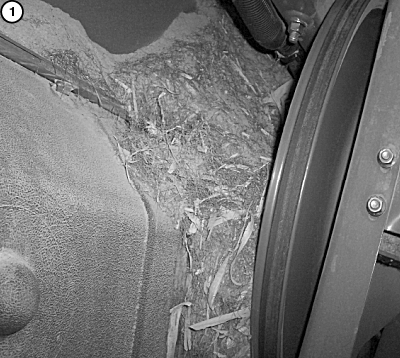

  1. Clean Grain Elevator Drives

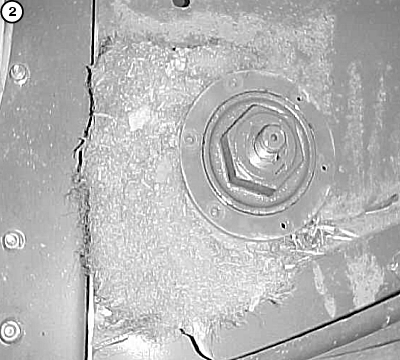

  2. Discharge Beater Drives

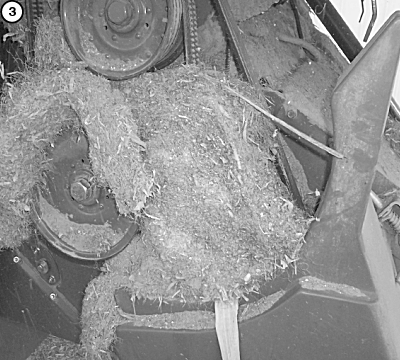

  3. Residue Disposal Drives

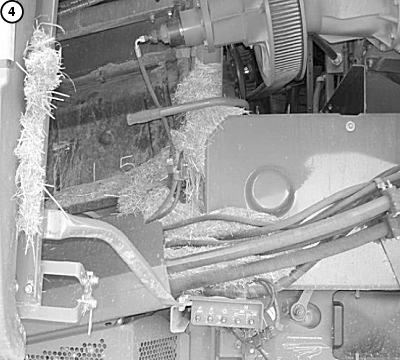

  4. Rotor Drives

Shields and Ledges

H90353
H90353-UN-03DEC07

H90354
H90354-UN-03DEC07

H90355
H90355-UN-03DEC07

H90356
H90356-UN-03DEC07

H90357
H90357-UN-03DEC07

H90358
H90358-UN-03DEC07

Crop material and other debris may accumulate on, behind, and/or under shields. Inspect and clean these areas periodically throughout the harvest day. Some examples of areas to inspect and clean are shown.

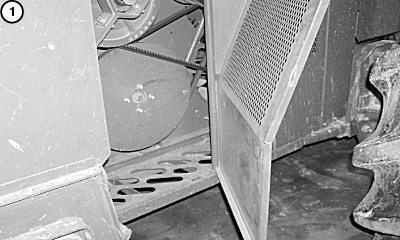

  1. Right Side Catwalk Area

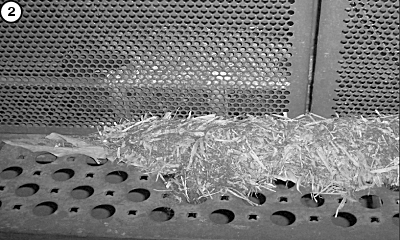

  2. Left Side Catwalk Area

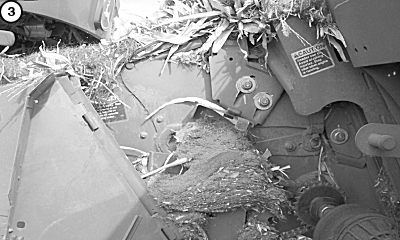

  3. Right Side Feeder House Shields

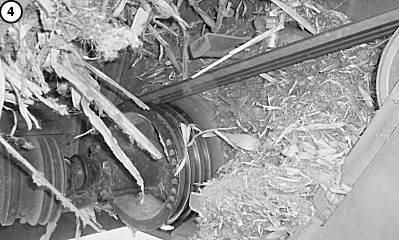

  4. Left Side Feeder House Shields

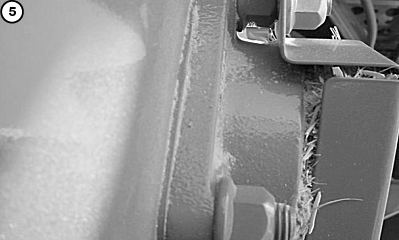

  5. Bearing Guards

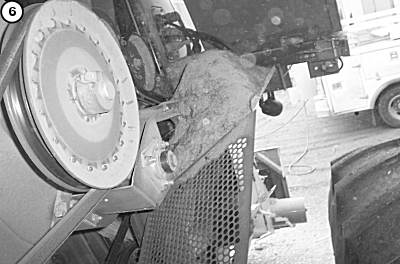

  6. Right Side Mud Shields

Wiring Harnesses and Hydraulic Hoses

H90359
H90359-UN-03DEC07

H90360
H90360-UN-03DEC07

Crop material and other debris may accumulate on, between, and/or around wiring harnesses and hydraulic hoses. Inspect and clean these areas periodically throughout the harvest day. Some examples of areas to inspect and clean are shown.

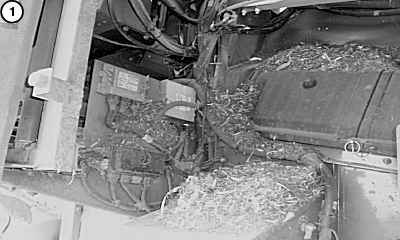

  1. Right Side Batteries

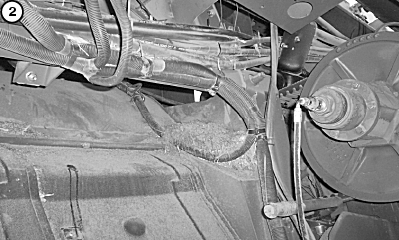

  2. Left Side Rotor Area

Transmission

H90362
H90362-UN-03DEC07

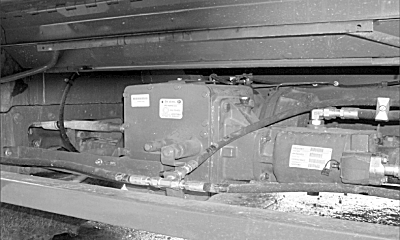

Crop material and other debris may accumulate on top of and around transmission. Inspect and clean area periodically throughout the harvest day.


Lubrication Decal Locations

H80953
H80953-UN-01JUN04

Left-Hand Lubrication Decal

H83439
H83439-UN-01JUN05

Right-Hand Rear Lubrication Decal

A - Lubrication Decals

Lubrication decals (A) show the different locations of grease points around the machine. Follow lubrication times provided on decals and refer to hour intervals listed in Lubrication and Maintenance section for further information.

Bearing failures or overheating can result in a fire. To reduce bearing failures or overheating, always refer to lubrication decals on machine.

Crop material and other debris may accumulate around bearings and bearing covers. Inspect and clean these areas periodically throughout the harvest day.

OUO6075,0000020-19-20080701
