Setup Pages

H86251-UN-21AUG07

H86252-UN-22AUG07

NOTE: 4 pages are displayed when not equipped with Harvest Smart Feed Rate and 5 pages when equipped with Harvest Smart Feed Rate.

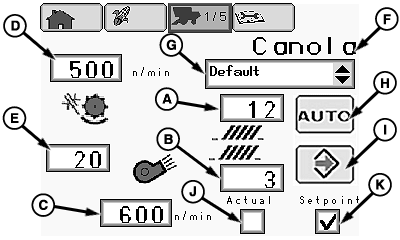

Page 1 of 5

Machine Settings:

• Automatic Combine Adjust (ACA) (Numeric Entry)
  • Chaffer Position (A)
  • Sieve Position (B)
  • Fan Speed (C)
  • Threshing Speed (D)
  • Threshing Clearance (E)
  • Crop (Viewable Only) (F)

• Crop Modifiers (G)
  • Default
  • Dry (Default)
  • Wet (Default)
  • New
  • Clean Out

• Auto Icon (H) - Desired machine settings are chosen by operator and automatically adjust to settings shown on CommandCenter display.
• Save Icon (I) - Allows operator to save personal machine settings.NOTE: Personalizing machine settings will not override factory settings.

• Actual Box (J) - When checked, automatic adjust settings will not work. Allows operator to change settings one at a time instead of machine automatically adjusting every setting again.
• Setpoint Box (K) - When checked, automatic adjust settings are active. Allows operator to change settings and allows machine to automatically adjust to these settings.

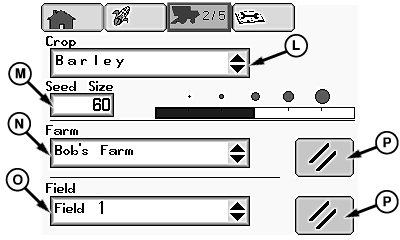

Page 2 of 5

• Crop (L)¹
  • Fixed List
• Loss Sensitivity
  • Seed Size (M)
• Farm (N)¹
  • Alphanumeric Data Entry
  • Clear Icon (P)
• Field (O)¹
  • Alphanumeric Data Entry
  • Clear Icon (P)

Page 3 of 5

H86253-UN-21AUG07

H86254-UN-21AUG07

H90868-UN-22FEB08

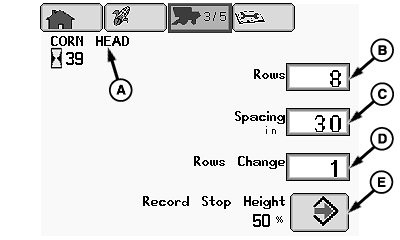

• Corn Head and Hour Counter² (A)
  • Header Type (Auto Detection)
  • Total Rows (Rows, Based on Type, Numeric Entry) (B)
  • Row Spacing (C)
  • Row Change (Decrease Cut Rows) (D)
  • Record Stop Height (Height Setup for Turning Recording ON/OFF) (E)

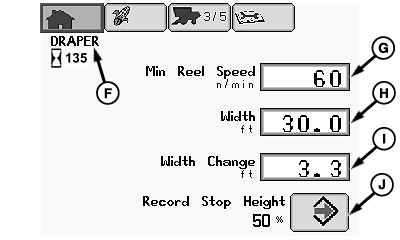

• Draper/Platform/Belt Pickup and Hour Counter² (F)
  • Header Type (Auto Detection)
  • Minimum Reel or Belt Pickup Speed (G)
  • Total Width (Total Width, Based on Type, Numeric Entry) (H)
  • Width Change (Decrease Cut Width) (I)
  • Record Stop Height (Height Setup for Turning Recording ON/OFF) (J)

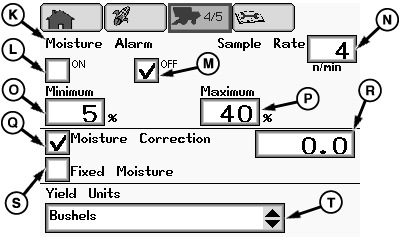

Page 4 of 5

NOTE: Page appears if equipped with moisture sensor.

• Moisture Alarm (K)
  • ON (L)
  • OFF (M)
  • Sample Rate (0 - 4) (N)
  • Minimum Alarm (1 - 50%) (O)
  • Maximum Alarm (1 - 60%) (P)

• Moisture Correction (-25.0 to 25.0, increments of 0.1) (Q)
  • Manual Offset Setting (R)
  • Fixed Moisture (S)

• Harvesting Yield Units (T)
  • Fixed List

Page 5 of 5

H87297-UN-22AUG07

H87298-UN-22AUG07

H86256-UN-22AUG07

Harvest Smart Feed Rate (Optional):

• Current Mode of Operation

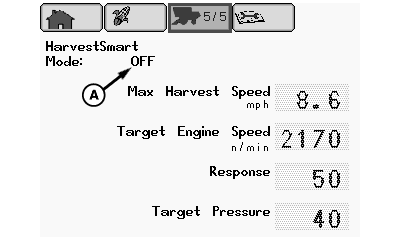

  • OFF (A)

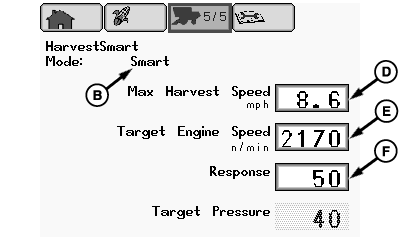

  • Smart (B)

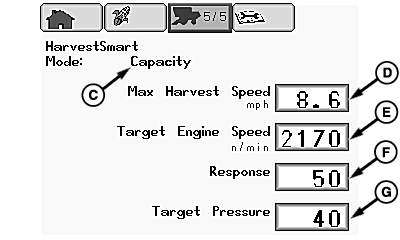

  • Capacity (C)
• Max Harvest Speed (2.0 - 14.0 km/h) (1.2 - 8.6 mph), increments of (0.1 km/h) (0.1 mph) (D)
• Target Engine Speed (2350 - 2560 rpm³, 2150 - 2350 rpm⁴, increments of 10 rpm) (E)
• Response (1 - 100, increments of 1) (F)
• Target Pressure (30 - 420, increments of 1) (G)
