Diagnostics, Calibration, Diagnostic Readings and Special Tests Pages

H90878-UN-25FEB08

H90879-UN-25FEB08

H90877-UN-25FEB08

Page 1 of 4

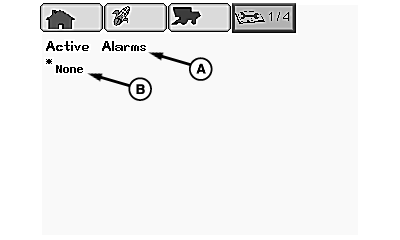

Active Alarms (A):

• None (B) - appears when no alarms are present at this time.

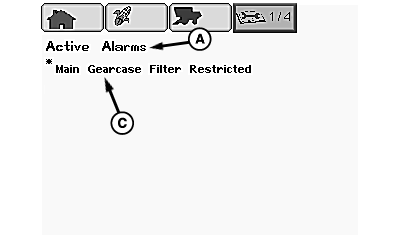

• Alarm Name(s) (C) - appears with the alarm name(s) when a problem is detected in the machine system.

Page 2 of 4

NOTE: Calibrations are done using instructions shown on CommandCenter display. Operator selects which calibration and highlights calibrate icon, and is guided through procedure.

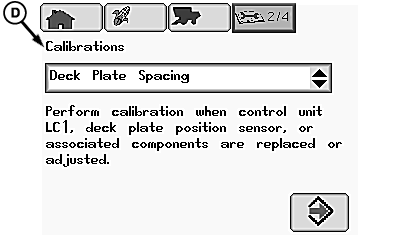

Calibrations (D):

• Refer to When to Calibrate in Calibration Procedures section for listing of calibrations.

H90873-UN-25FEB08

H90874-UN-25FEB08

Page 3 of 4

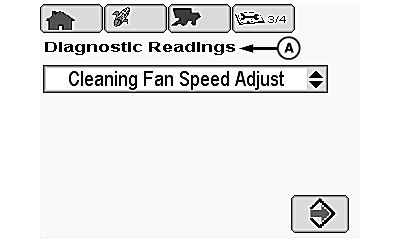

Diagnostic Readings (A):

• Diagnostic Readings - assists in providing more information about a machine subsystem for troubleshooting. CommandCenter display will gather data from diagnostic addresses and displays collected information on one page.

Page 4 of 4

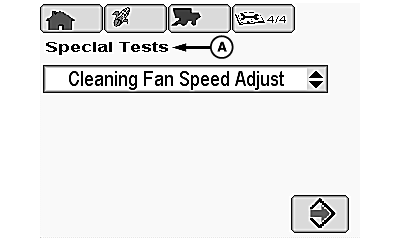

Special Tests (A):

NOTE: Cleaning Fan Speed Adjust special test may not perform correctly if cleaning fan speed slowdown kit was installed.

• Diagnostic Special Tests - helps minimize amount of time required to diagnose an issue by leading operator or technician through a special set of instructions. Machine automatically the checks as the operator is guided through the special tests.
