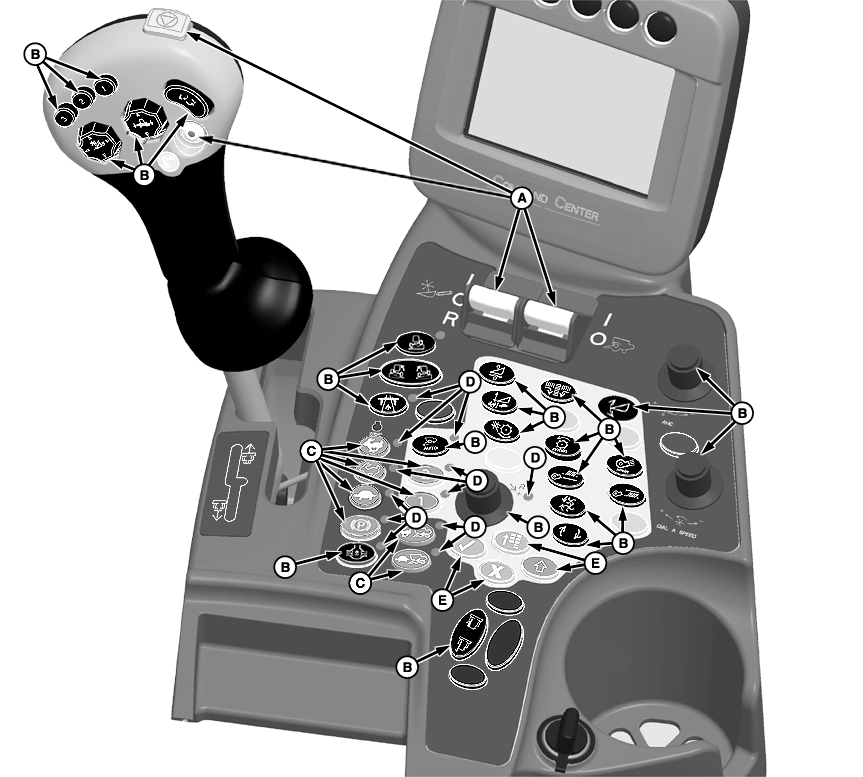

Switch and Knob Colors

H90881
H90881-UN-03APR08

Before operating machine for the first time, become familiar with switches and controls. Controls are color “coded” to help quickly locate them when operating.

  • Yellow (A) - drive engagement
  • Black (B) - operating adjustments and controls
  • Orange (C) - ground drive and engine speed
  • Green (D) - activation indicator
  • Green (E) - CommandCenter display controls

OUO6075,0000056-19-20080324
