ProDrive Mode 1 and 2 Switches (Orange) (ProDrive Machines)

NOTE:

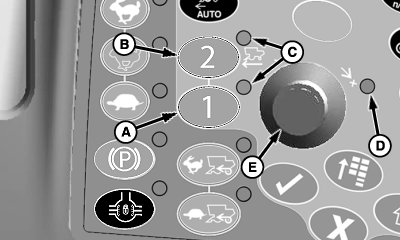

H91048-UN-28MAR08

A - ProDrive Mode 1 Switch

B - ProDrive Mode 2 Switch

C - Indicator Lights

D - Indicator Light

E - Selection Dial

Maximum reverse ground speed is 10 km/h (6.2 mph) and does not change when in either mode.

ProDrive mode 1 or 2 switches can be selected while machine is moving.

ProDrive mode 1 switch (A) and ProDrive mode 2 switch (B) are used to control transmission ground speed electronically. Switches are used to set a comfortable harvest or transport speed. When desired ground speed is set and multifunction control handle is moved fully forward, machine operates no faster than the setpoint for the selected mode.

1. Press ProDrive mode 1 or 2 switch. Indicator lights (C) indicate which mode is currently selected.

2. Indicator light (D) comes on indicating setpoint can be adjusted.

3. Turn selection dial (E) towards plus (+) symbol to increase speed or towards minus (-) symbol to decrease speed.

4. CommandCenter display shows operator adjustment settings for:

   NOTE:

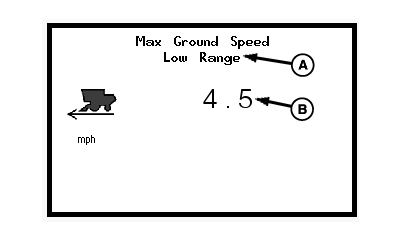

   H91049-UN-22APR08

   A - Max Ground Speed Low Range

   B - Current Setpoint Speed

   Mode 1 maximum speed cannot be set higher than current maximum speed set in mode 2.

   Machine has a speed range of 0—7.2 km/h (0—4.5 mph)) as shown and will not operator faster than setpoint speed.

   Speed change occurs between mode 1 and mode 2. (Example: Mode 1 set at 8 km/h (5 mph) with multifunction control handle in mid range (4 km/h 2.5 mph). Mode 2 set at 20 km/h (12.4 mph) with multifunction control handle in mid range 10 km/h (6.2 mph). Current ground speed increases between modes).

   Max Ground Speed Low Range (Mode 1)

   • Max Ground Speed Low Range (A) displays when ProDrive mode 1 switch is selected.
     • Display shows current setpoint speed (B).
     • When selection dial is rotated, machine slowly increases or decreases ground speed no matter where multifunction control handle is positioned.



---

NOTE:

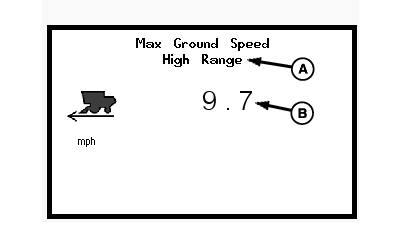

H91050-UN-22APR08

A - Max Ground Speed High Range

B - Current Setpoint Speed

Speed change occurs between mode 1 and mode 2. (Example: Mode 1 set at 8 km/h (5 mph) with multifunction control handle in mid range (4 km/h 2.5 mph). Mode 2 set at 20 km/h (12.4 mph) with multifunction control handle in mid range 10 km/h (6.2 mph). Current ground speed increases between modes).

Max Ground Speed High Range (Mode 2)

• Max Ground Speed High Range (A) displays when ProDrive mode 2 switch is selected.
  • Display shows current setpoint speed (B).
  • When selection dial is rotated, machine slowly increases or decreases ground speed no matter where multifunction control handle is positioned.

NOTE:

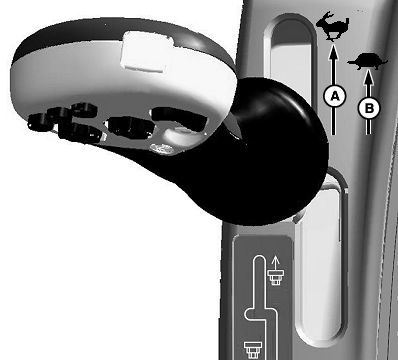

H91047-UN-02APR08

A - Higher Acceleration Range

B - Lower Acceleration Range

Example 1: Attaching header to machine and harvesting desired crop. Mode 1 set to 1.6 km/h (1 mph). Mode 2 set to 11.3 km/h (7 mph).

Example 2: Waterway approaches and harvesting desired crop. Mode 1 set to 4.8 km/h (3 mph). Mode 2 set to 11.3 km/h (7 mph).
