Chaffer/Sieve Remote Shoe Adjust Motor (Self-Leveling Shoe)—Manual Adjust

  1. CAUTION: Shut OFF engine, set parking brake and remove key to help prevent accidental starting and personal injury.

    NOTE: Same manual adjust procedure can be used on chaffer or sieve motor.

    Two center chaffer bays must be removed to adjust sieve bay motor.

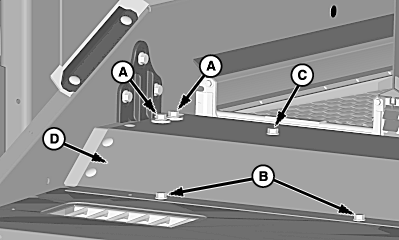

    H91029
    H91029-UN-26MAR08

    A - Cap Screws (4 Used)

    B - Cap Screws (4 Used)

    C - Cap Screws (3 Used)

    D - Shield

    Remove cap screws (A—C) and shield (D).


  2. IMPORTANT: To prevent adjusting motor damage, do not use wrench on knob.

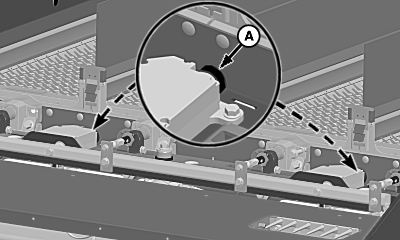

    H91057
    H91057-UN-31MAR08

    A - Knob

    Use knob (A) to adjust motor. Turn knob clockwise to close and counterclockwise to open chaffer/sieve.


  3. NOTE: Motor must be calibrated if it is repaired or replaced, see Calibration Procedures section.

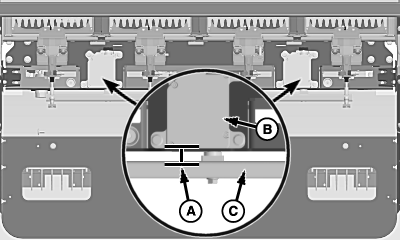

    H91245
    H91245-UN-22APR08

    A - Distance

    B - Adjust Motor

    C - Linkage Bar

    Distance (A) between adjust motors (B) and linkage bar (C) must be set the same to allow louvers to open and close freely.


OUO6075,0000070-19-20080424
