Lubrication Decal Locations

H80953
H80953-UN-01JUN04

Left-Hand Lubrication Decal

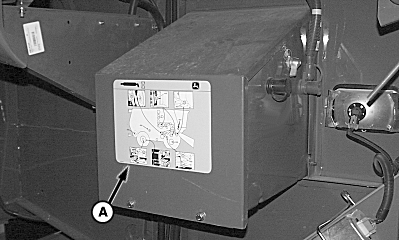

H83439
H83439-UN-01JUN05

Right-Hand Rear Lubrication Decal

A - Lubrication Decals

Lubrication decals (A) show the different locations of grease points around the machine. Follow lubrication times provided on decals and refer to hour intervals listed in this section for further information.

Bearing failures or overheating can result in a fire. To reduce bearing failures or overheating, follow hour intervals listed in this section for further information.

Crop material and other debris may accumulate around bearings and bearing covers. Inspect and clean these areas periodically throughout the harvest day.
