Diagnostic Trouble Code Screen Information

H91339
H91339-UN-29APR08

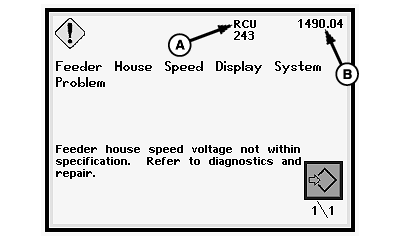

Active Trouble Code

H91340
H91340-UN-29APR08

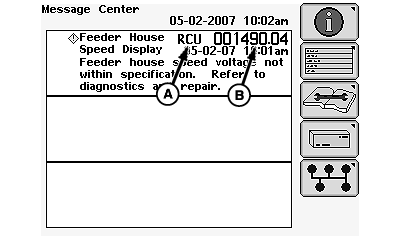

Message Center Active Trouble Code

H91342
H91342-UN-29APR08

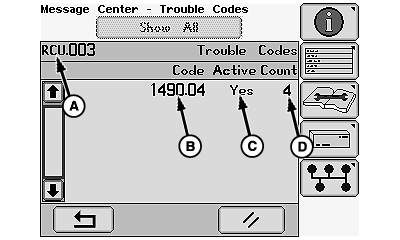

Individual Controller Stored Trouble Code

H91341
H91341-UN-29APR08

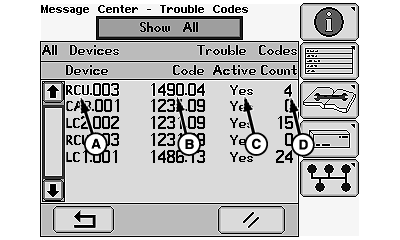

All Controller Stored Trouble Codes

A - Controller/Device

B - Trouble Code

C - Active (Yes/No)

D - Count

When a diagnostic trouble code screen appears or a diagnostic trouble code needs to be retrieved, the following information needs to be provided to your John Deere dealer to properly diagnose the symptom:

  • Controller (A)
  • Trouble Code (B)
  • Active (Yes/No) (C)
  • Count (D)

NOTE: It may be necessary to rotate selection dial to scroll through trouble codes if multiple codes are displayed.

OUO6075,00000E5-19-20080430
