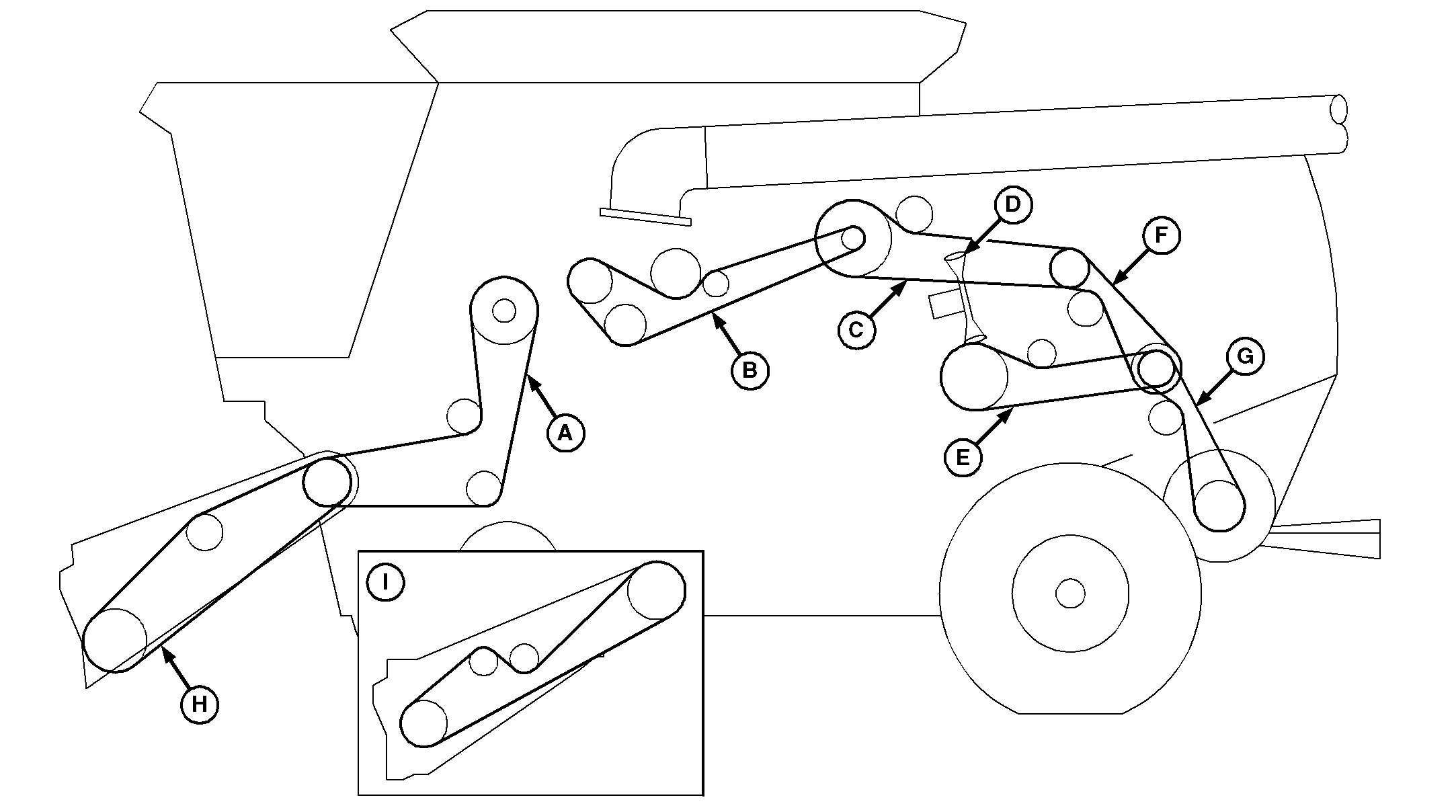

Drive Belts—Left-Hand

H89366-UN-25JUL07

A - Header and Reel Pump Standard/High Capacity Belt

B - Unloading Auger System, #60 Roller Chain

C - Unloading Auger System Belt

D - Separator Variable Drive Belt

E - Discharge Beater Belt

F - Countershaft, Discharge Beater and Chopper Belt

G - Straw Chopper Belt

H - Feeder House Variable Drive Standard/High Capacity Belt

H - CommandTouch Multi-Speed Feeder House Drive Belt (9770 STS Option)

I - Fixed Speed Feeder House Drive Belt
