Lighting Locations

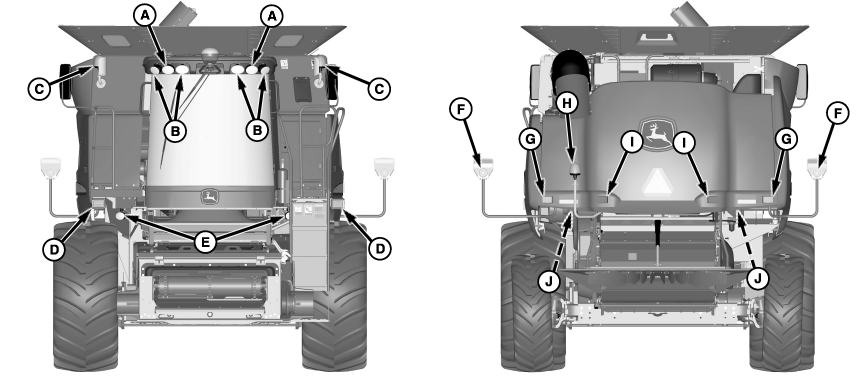

Front and Rear View Lights

H93378-UN-05FEB09

A - High Intensity Discharge (HID) Cab Headlights

B - Cab Headlights

C - Beacon Lights

D - Warning Lights

E - Stubble Lights

F - Warning Lights

G - Warning Lights

H - Beacon Light

I - Taillights/Stop Lights

J - Discharge Lights

Beacon/Hazard Light Switch:

• CAUTION: Lights must be turned ON when transporting. Swing cab ladder forward to orient warning light towards oncoming motorists.

• Switch in middle position controls beacon lights (C, H).
• Switch in top position controls beacon lights (C, H), warning lights (D, F, G), four road lights (B), and taillights (I) (if engine is running).
• Beacon lights and warning lights are located on both sides of the machine at the front and rear and give warning to other drivers when transporting on roadways.

Road Light Switch:

• CAUTION: Lights must be turned ON when transporting. Swing cab ladder forward to orient warning light towards oncoming motorists.

• Switch controls warning lights (D, F, G), four road lights (B), and taillights (I).
• Beacon lights and warning lights are located on both sides of the machine at the front and rear and give warning to other drivers when transporting on roadways.

Auto Beacon/Field Light Switch:

• NOTE: These lights will not operate when the hazard warning lights are ON.

• Switch in middle position causes beacon lights (C, H) to illuminate when grain tank is 3/4 full. Beacons provide a signal to the grain cart operator that grain tank is full and is ready to be unloaded.
• Switch in top position controls auto beacon lights (C, H), warning lights (D, G), taillights (I), and field lights (A, B).
• Field lights provide operator with area lighting for operation at night and during low light conditions.

H93378-UN-05FEB09

A - High Intensity Discharge (HID) Cab Headlights

B - Cab Headlights

C - Beacon Lights

D - Warning Lights

E - Stubble Lights

F - Warning Lights

G - Warning Lights

H - Beacon Light

I - Taillights/Stop Lights

J - Discharge Lights

Work Lights Switch:

• CAUTION: To avoid motorist confusion, do not operate work lights when transporting on public roadways.

  NOTE: CommandCenter display shows a warning indicator if rear discharge or stubble lights are left ON while transporting.

• Switch in middle position controls stubble lights (E).
• Switch in top position controls stubble lights (E) and rear discharge lights (J).
• Stubble lights provide operator with area lighting behind header for night operation and low light conditions¹.
• Rear discharge lights provide operator with rear area lighting for night operation and low light conditions¹.

Stop Lights:

• Stop lights (I) come ON when machine senses a deceleration. Lights stay on for a minimum of two seconds.
• Once speed is less than 1.6 km/h (1 mph), stop lights stay on for two minutes or until forward acceleration is sensed and the speed is greater than 1.6 km/h (1 mph).
• These lights also act as turn indicators, and illuminate when a turn is signaled. The light in the direction of the turn flashes, while the opposite light stays on (not flashing). If a turn is signaled while machine is decelerating, the turn indicator function has priority over the stop light function.

Exit Lighting:

• Two inner most cab headlights (B) and exiting lights remain on for a maximum of 90 seconds after key switch is turned OFF (if road or field lights were in use within the previous five minutes). Operator chooses to light left-hand or right-hand side of machine using turn signal lever.

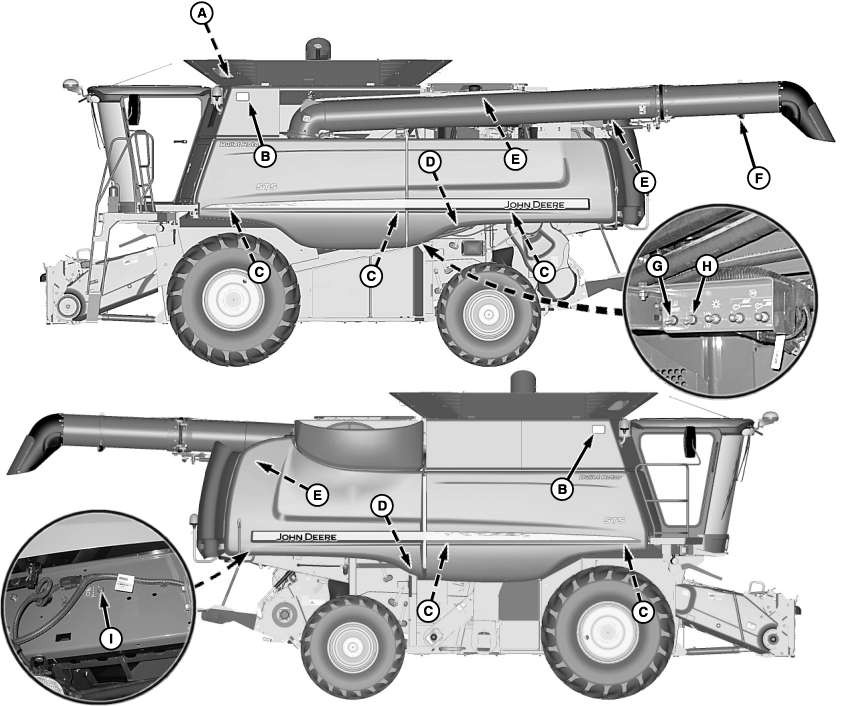

Left and Right Side View Lights

H93379-UN-05FEB09

A - Grain Tank Light

B - Side Finder Lights

C - Service Door Lights

D - Cleaning Shoe Lights

E - Engine Compartment Service Lights

F - Unloading Auger Light

G - Cleaning Shoe Light Switch

H - Service Lights Switch

I - Engine Compartment Service Lights Switch

Auto Beacon/Field Light Switch:

• NOTE: These lights will not operate when the hazard warning lights are ON.

• Switch in top position controls grain tank light (A), side finder lights (B) (with turn signal lever), and unloading auger light (F).
• Side finder lights provide operator with area lighting on each side of machine for night operation and low light conditions.NOTE: When Field Light switch is ON, use turn signal lever to actuate either right or left side finder light.

• Grain tank light provides operator with lighting in grain tank for night operation and low light conditions.
• Unloading auger light comes ON when auger is extended more than 50% with field light switch ON.
• Unloading auger light provides lighting for unloading grain tank at night or in low light conditions.

Cleaning Shoe Lights:

• Cleaning shoe lights (D) provide operator with lighting for cleaning shoe adjustment at night or in low light conditions.
• Cleaning shoe ON/OFF switch (G) is located above left-hand separator shield.

H93379-UN-05FEB09

A - Grain Tank Light

B - Side Finder Lights

C - Service Door Lights

D - Cleaning Shoe Lights

E - Engine Compartment Service Lights

F - Unloading Auger Light

G - Cleaning Shoe Light Switch

H - Service Lights Switch

I - Engine Compartment Service Lights Switch

Service Lights (Optional):

• CAUTION: Avoid motorist confusion. Do not operate service lights when transporting on public roadways.

• Service lights (C) are provided on both sides of machine under the gull wing doors and provide better visibility of separator area.
• Service lights ON/OFF switch (H) is located above left-hand separator shield.

Engine Compartment Service Lights (Optional):

• Engine compartment service lights (E) provide lighting for engine deck area at night or in low light conditions.
• Engine compartment service lights ON/OFF switch (I) is located on right-hand rear side of machine.
• Switch controls engine compartment door light, rear engine deck light and engine compartment front light.

Exit Lighting:

• Two inner most cab headlights and side finder lights (B) remain on for a maximum of 90 seconds after key switch is turned OFF (if road or field lights were in use within the previous five minutes). Operator chooses to light left-hand or right-hand side of machine using turn signal lever.
