Clean Grain Elevator Conveyor Chain—Adjusting

H62184-UN-13JAN00

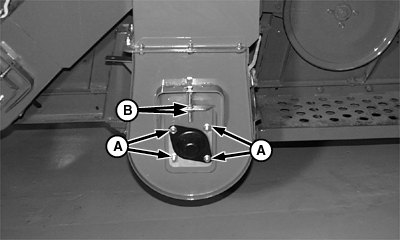

Clean Grain Elevator (Standard Capacity)

H87582-UN-07MAR07

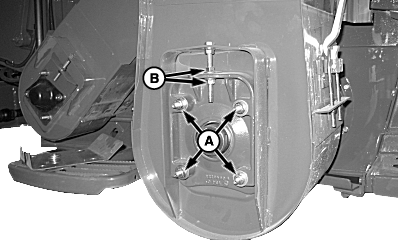

Clean Grain Elevator (High Capacity)

A - Nuts (4 Used)

B - Nuts

Remove nuts from bearing cover.

Loosen nuts (A) and use nuts (B) to adjust chain. Move bearing carrier downward to tighten chain.

Elevator chain is adjusted properly when lower end of chain can be slid side-to-side on sprocket but cannot be pulled away from sprocket. When chain loosens up to 6 mm (1/4 in.) from sprocket, readjust chain. After a period of use, it may be necessary to remove a half link to adjust chain correctly.
