Chaffer/Sieve Adjusting Switch (Optional)

NOTE:

H65987
H65987-UN-11SEP01

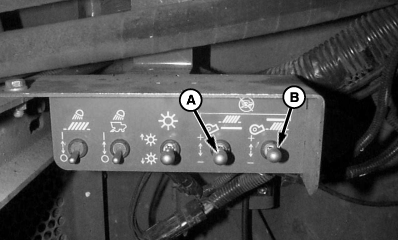

A - Chaffer Adjust Switch

B - Sieve Adjust Switch

If equipped with self-leveling shoe, switches are used to tilt chaffer and sieve bays while in calibration mode.

Chaffer adjust switch (A) and sieve adjust switch (B) are located on left-hand side of combine above separator shield.

Chaffer adjust switch and sieve adjust switch allows the operator to open or close the chaffer and sieve to various positions.

OUO6075,000024F-19-20081124
