Every 50 Hours (9670 STS)

  1. NOTE:

    H93388
    H93388-UN-05FEB09

    H87397
    H87397-UN-13FEB07

    Start machine and cycle separator through full speed range a couple of times to distribute grease evenly.

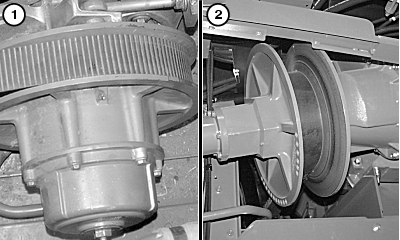

    Separator Variable Speed Driven Sheaves - Cycle sheaves through speed range if operated at high speed all the time. Cycling sheaves helps replenish bushings with grease already inside sheave cavity.


  2. Separator Variable Speed Driver Sheave - Cycle sheaves through speed range if operated at high speed all the time. Cycling sheaves helps replenish bushings with grease already inside sheave cavity.

OUO6075,00002DA-19-20090205
