First 100 Hours (ProDrive Machines)

1. NOTE:

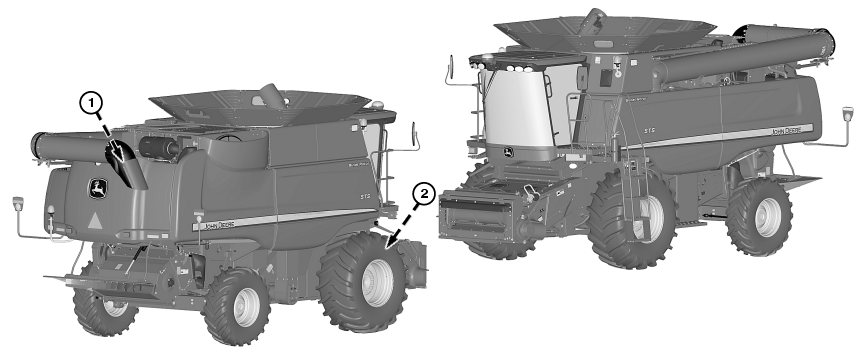

   H93393-UN-05FEB09


   H93561-UN-05MAR09

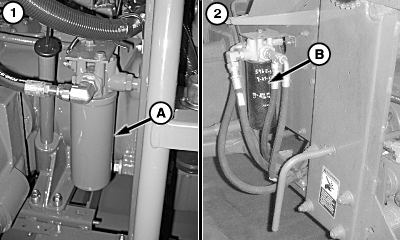

   A - Engine Power Take-Off Gearcase Filter

   B - ProDrive Filter

   It is not necessary to drain system when installing filters.

   Engine Power Take-Off Gearcase Filter - Replace engine gearcase filter (A). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

---




2. ProDrive Filter - Replace ProDrive filter (B). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.
