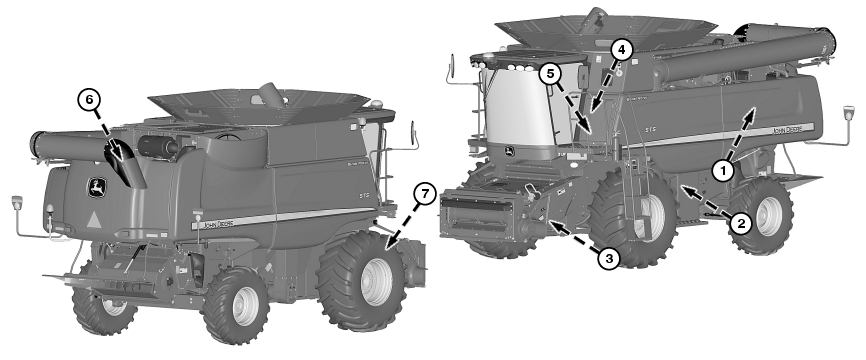

Every 400 Hours

1. NOTE:


   H93399-UN-05FEB09


   H91516-UN-30APR08

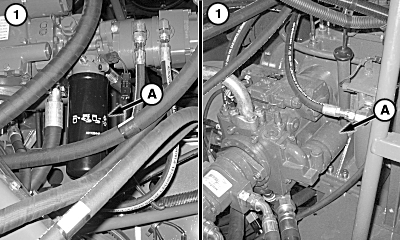

   Non ProDrive (Left) and ProDrive (Right)


   H91517-UN-30APR08


   H91518-UN-30APR08


   H93562-UN-05MAR09

   A - Hydrostatic Charge Filter

   B - Hydraulic/Hydrostatic Filter

   C - Plug

   D - Dipstick

   E - Reservoir Cap

   F - Engine Power Take-Off Gearcase Filter

   G - Multi-Speed Feeder House/ProDrive Filter

   It is not necessary to drain system when installing filters.

   Hydrostatic Charge Filter - Replace hydrostatic charge filter (A). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

---

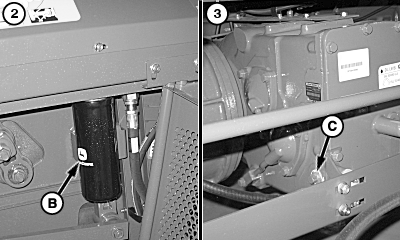

2. Hydraulic/Hydrostatic Filter - Replace hydraulic/hydrostatic filter (B). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

3. Transmission Oil (Non ProDrive Machines) - Remove plug (C) and check oil level. Add oil as needed to within 12 mm (1/2 in.) of bottom of hole.

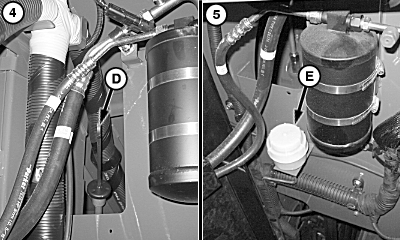

4. Primary Countershaft Gearcase Oil (Non Multi-Speed Feeder House Machines) - Check primary countershaft gearcase oil level with dipstick (D). Add oil as needed.

5. Brake Fluid (Non ProDrive Machines) - Check brake fluid level. Look through reservoir cap (E). Add brake fluid to 6 mm (1/4 in.) from top. Do not let dirt get into brake fluid.

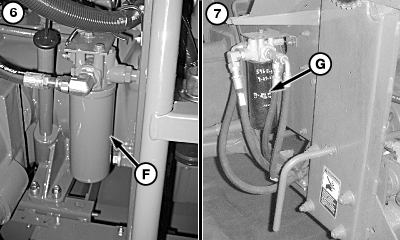

6. Engine Power Take-Off Gearcase Filter - Replace engine gearcase filter (F). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

7. Multi-Speed Feeder House/ProDrive Filter (Optional) - Replace multi-speed feeder house/ProDrive filter (G). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.
