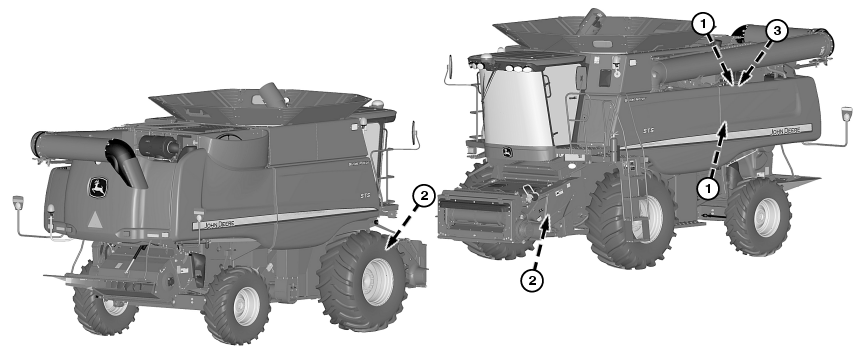

Every 1000 Hours (ProDrive Machines)

1.
   H93404-UN-05FEB09


   H91110-UN-10APR08


   H93563-UN-05MAR09


   H91112-UN-10APR08

   A - Drain Plugs

   B - Engine Power Take-Off Gearcase Filter

   C - Drain Plug

   D - ProDrive Filter

   E - Dipstick

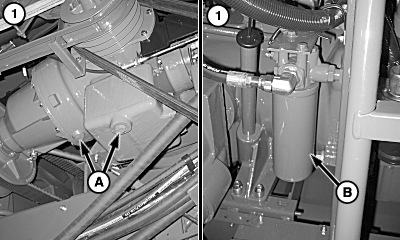

   Engine Power Take-Off Gearcase Oil and Filter - Drain oil at plugs (A) and replace engine power take-off gearcase filter (B). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

---

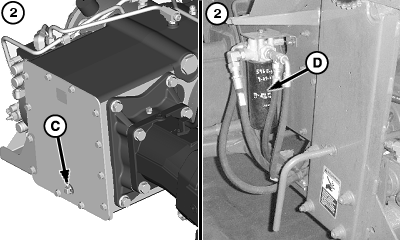

2. ProDrive Transmission Oil and Filter - Drain oil at plug (C) and replace filter (D). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

3. NOTE: Overfilling engine power take-off gearcase may cause oil to force dipstick tube out when machine is running.

   Fill Engine Power Take-Off Gearcase

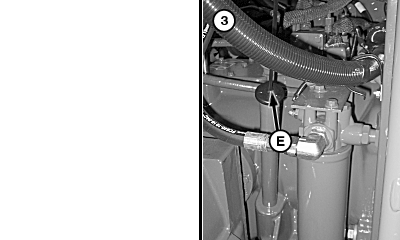

   1. Fill until oil is at bottom line on dipstick (E).
   2. Install dipstick and run engine for one minute minimum.
   3. Shut OFF engine and let machine sit for five minutes allowing air to settle from oil.
   4. Remove dipstick and check oil level. Add oil until oil level is at top line on dipstick.
   5. Repeat procedures until oil level remains at top line on dipstick.
