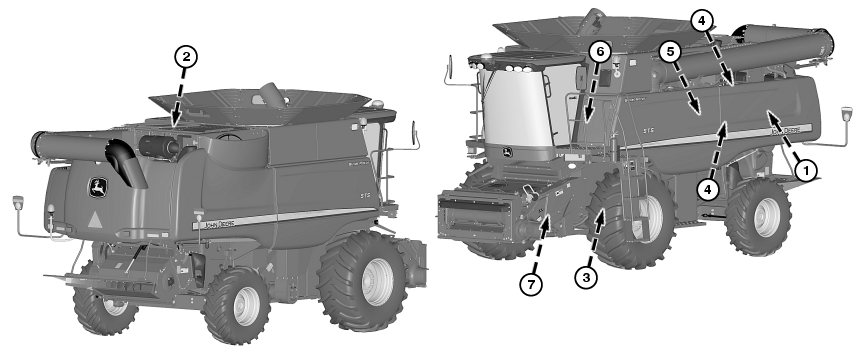

Every 2000 Hours

H93406-UN-05FEB09

H86819-UN-20APR07

H86820-UN-19APR07

H86821-UN-16FEB07

H86822-UN-16FEB07

1. NOTE:


   H86824-UN-16FEB07


   H86825-UN-16FEB07

   A - Hydraulic Hose

   B - Cap

   C - Sight Glass

   D - Drain Plug

   E - Fill Plug

   F - Check Hole

   G - Drain Plugs

   H - Dipstick

   I - Protective Cap

   J - Drain Valve

   K - Dipstick

   L - Cap

   M - Dipstick

   N - Tube

   O - Block

   P - Check Plug

   Before removing hydraulic hose, refer to Specifications section for hydraulic reservoir capacity.

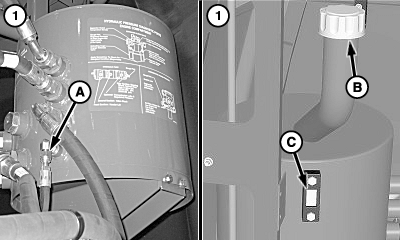

   Hydraulic/Hydrostatic Reservoir Oil - Remove hydraulic hose (A) to drain. Clean screen and cap (B) and refill reservoir. Oil level must show in middle on sight glass (C).

---

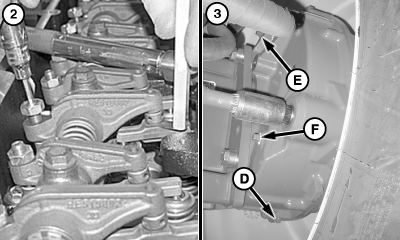

2. Engine Valve Back Lash - Have engine valve back lash checked and adjusted if necessary, by your John Deere dealer.

3. Final Drives Oil (both sides) - Remove drain plug (D) to drain. Remove fill plug (E) to refill until oil level is within 12 mm (1/2 in.) of bottom check hole (F).

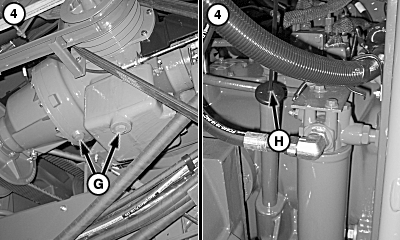

4. Engine Power Take-Off Gearcase Oil (Non ProDrive and Non Multi-Speed Feeder House Machines) - Drain at plugs (G). Refill and check oil level at dipstick (H).

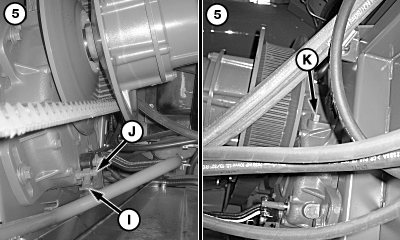

5. Separator Drive Oil - Remove protective cap (I) and attach hose to drain valve (J). Open valve to drain. Refill at dipstick (K) as needed.

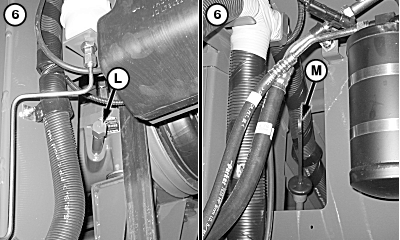

6. Primary Countershaft Gearcase Oil (Non Multi-Speed Feeder House Machines) - Drain at cap (L) and refill at dipstick (M). Oil level must show on knurled part of dipstick.

7. Transmission Oil (Non ProDrive Machines) - Slide tube (N) out of block (O). Remove block to drain. Remove check plug (P) and refill to within 12 mm (1/2 in.) of hole.
