Unloading Auger Position—Adjusting (Standard Grain Tank)

1. CAUTION:

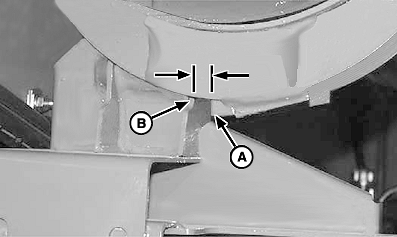

   H80948-UN-27MAY04

   A - Plate

   B - Stop

   Shut OFF engine, set parking brake and remove key.

   With hydraulic cylinder fully retracted, check gap between plate (A) and stop (B).

   Gap must be set to specification.

   Item	Measurement	Specification
   Plate to Stop	Gap	12—16 mm (1/2—5/8 in)

---




2.

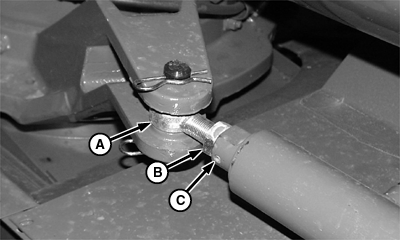

   H66021-UN-30JAN01

   A - Eyebolt

   B - Jam Nut

   C - Set Screw

   If gap is incorrect, adjust eyebolt (A).

---




3. Loosen jam nut (B) and set screw (C).

4. Adjust eyebolt to obtain correct gap

5. Tighten jam nut and set screw.
