Unloading Auger Cradle Support Bracket—Adjusting (High Unload Rate Grain Tank)

1. CAUTION:

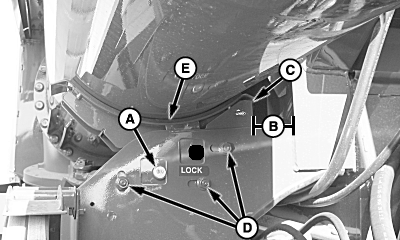

   H93802-UN-13APR09

   A - Pin

   B - Distance

   C - Cradle Support Bracket

   D - Cap Screws

   E - Wear Plate

   Shut OFF engine, set parking brake and remove key.

   Swing unloading auger to storage or transport position and keep cradle pinned (A).

---




2. Measure distance (B) between cradle support bracket (C) and grain tank frame as shown.

   Item	Measurement	Specification
   Cradle Support Bracket to Grain Tank Frame	Distance	79 mm (3-1/8 in.)

3. NOTE: Verify that lower edge of cradle support bracket is square with grain tank frame.

   If distance is incorrect, loosen cap screws (D) and adjust to specifications.

4. Adjust cradle support bracket (C) up or down until wear plate (E) contacts lower surface of unloading auger.

5. Tighten cap screws after dimension is properly adjusted.
