Cleaning Out Machine (Annual and Specialty Crops)
CAUTION:
H74963-UN-28JAN03
A - Horn
To prevent injury, never clean machine with engine running and separator engaged. Shut OFF engine, set parking brake and remove key.The following instructions are recommended when cleaning out machine for certified seed crops or when transporting machine inter-state.
CAUTION: Block header safely so it will not move. Lower reel safety stops.
Remove header from machine.
Drive machine over end rows or bumps to jar and shake dirt loose. Shut OFF engine, set parking brake and remove key.
Open or remove all doors and drain holes.

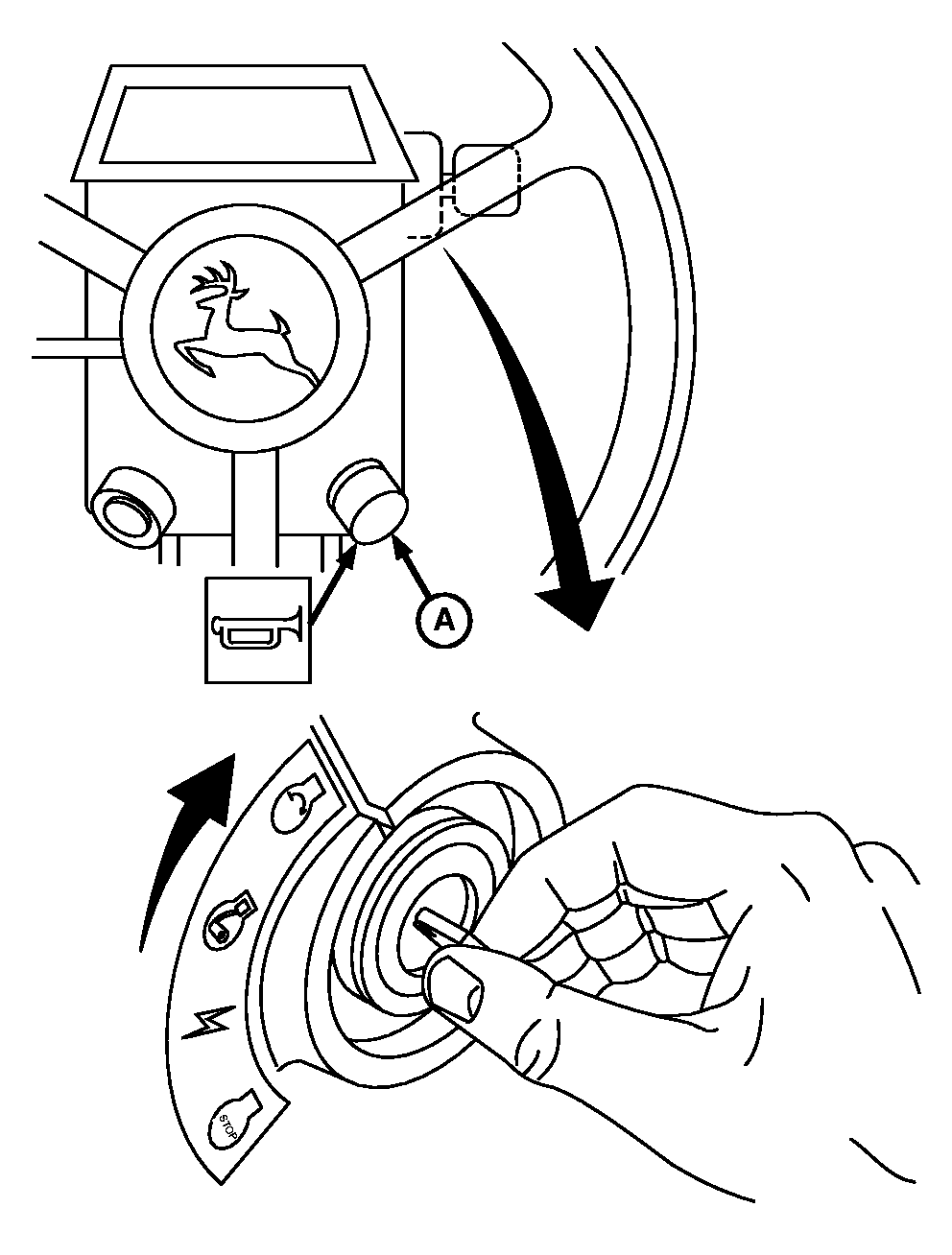

CAUTION: Sound horn (A) to clear everyone from area. Stay clear of machine when discharging chaff.
Start engine and let separator run until chaff stops coming out rear of machine.
Lower engine rpm to low idle and engage separator several times. Running the separator at low idle removes dirt from inside the rotor.
Move throttle to high rpm and run for a few minutes. Repeat cycle until chaff no longer comes out rear of machine.
CAUTION: Keep bystanders clear of machine when discharging chaff.
Drive machine onto blocking so right-hand side is about 150 mm (6 in.) higher, or park on incline so dirt can run out.
CAUTION:
H39607-UN-11OCT88
When working with compressed air in dusty conditions, you must wear goggles and dust mask for personal protection. Air hose must have a 2 m (6 ft.) wand (end).
Start at top of machine and work down.
H62230-UN-19JAN00
H83719-UN-10JUN05
A - Cleanout Door
B - Cleanout Door
C - Cleanout Door
D - Latch
E - Cleanout Door

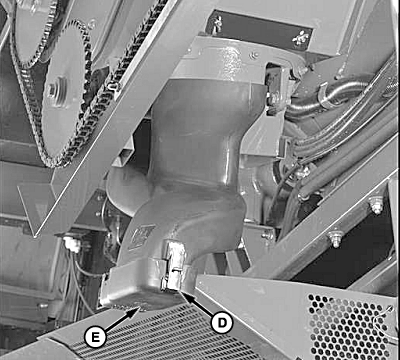

Open cleanout doors (A), (B) and (C).IF EQUIPPED: Release latch (D) and open cleanout door (E).
Clean grain from under grain tank cross augers over to the sump.
Clean grain from edges of unloading auger sump to the bottom. Grain must be cleaned out from doors standing on ground.
H87850-UN-10APR07
H51797-UN-15JAN99
A - Sample Trough
B - Clamps

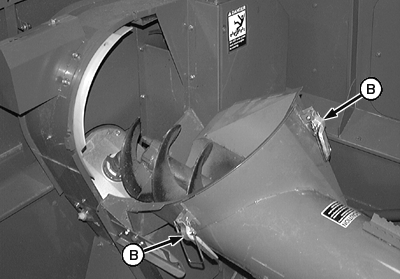

Remove grain tank sample trough (A) and place in storage position inside grain tank.Release clamps (B) and lower auger.
Clean top area and down into clean grain elevator to clean elevator chain. Clean all sides.
H76204-UN-28APR03
A - Clamps
B - Grain Tank Window

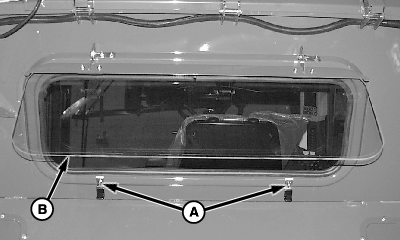

Loosen clamps (A) and swing grain tank window (B) up.Clean out area behind cab, around primary countershaft and over separator.
H87627-UN-13MAR07
A - Access Door

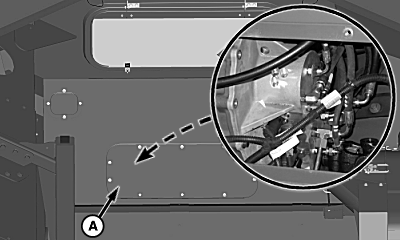

IF EQUIPPED: Remove access door (A) on front side of grain tank and clean material out around multi-speed feeder house drive gearcase.
H82407-UN-09FEB05
A - Quick-Lock Pins

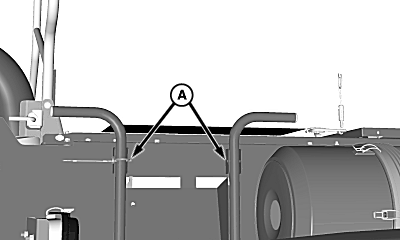

Clean engine compartment area. Ladder can be moved by removing quick-lock pins (A) and lifting bottom of ladder out of slot.
H82409-UN-09FEB05
A - Handrail
B - Engine Access Cover

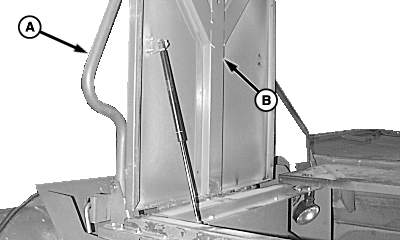

Raise handrail (A) and raise engine access cover (B).
H87208-UN-05APR07
A - Access Step
B - Engine Access Cover
C - Engine Access Cover

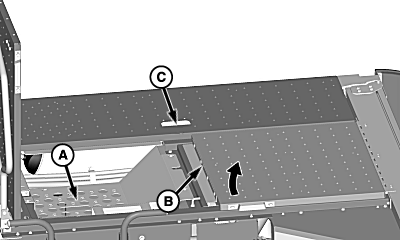

Stand on access step (A) to raise engine access covers (B) and (C).Clean area around separator and both sides of engine.
Clean entire engine compartment area, especially under engine.
Wipe up any oil or grease found on the engine area.
H86740-UN-23OCT06
A - Rotary Screen Door
B - Condenser

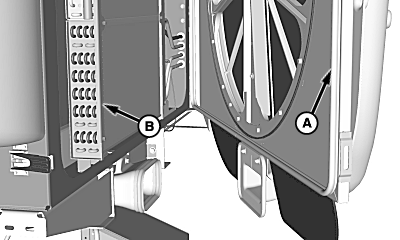

Open rotary screen door (A) and clean the following areas from inside out: radiator, oil cooler, condenser (B), and rotary screen.
H62232-UN-19JAN00
H62233-UN-19JAN00
A - Tailings Elevator Door
B - Clean Grain Elevator Door
C - Wing Nuts

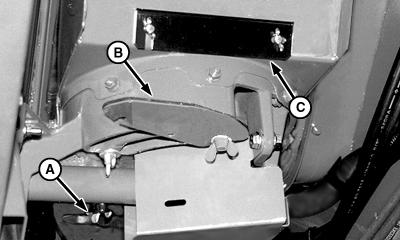

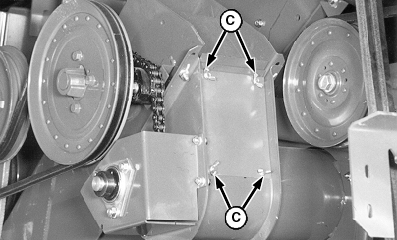

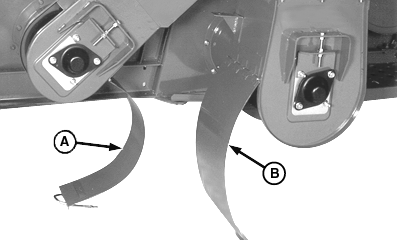

Open lower tailings elevator door (A) and clean grain elevator door (B).Remove wing nuts (C) and remove door at upper end of tailings elevator.
Clean down sides of elevator and clean out cross auger trough.
H75117-UN-10FEB03
H76150-UN-24APR03
H90905-UN-27FEB08
A - Nuts
B - Feeder House Door
C - Feeder House Door

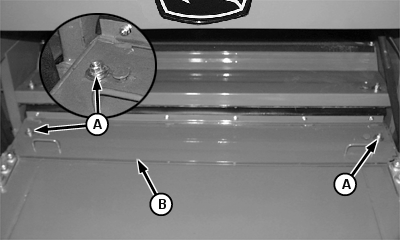

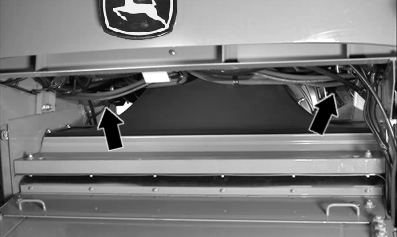

Loosen nuts (A) on each side of feeder house door and push nuts towards center of feeder house.Pull door forward to remove.

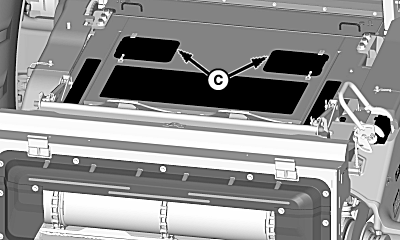

Clean feeder house through top doors (B) and (C).
Lift conveyor chain and let chain snap back several times while cleaning.
H74779-UN-14JAN03
A - Handle

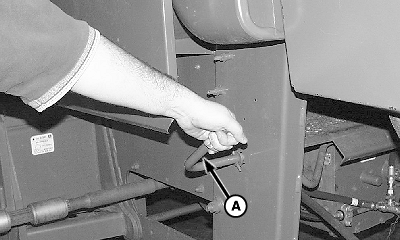

Lower stone trap and feed plate using handle (A). Clean areas out.
H91139-UN-15APR08
A - Lock-Out Pin
B - Handle
C - Cleanout Door

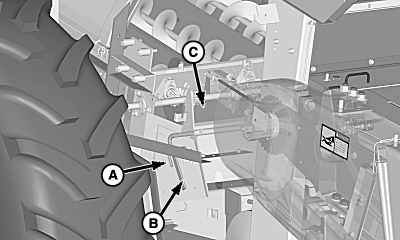

ProDrive Machines: Pull lock-out pin (A) and move handle (B) up to dump cleanout door (C) and move handle down to close and lock cleanout door.
H62265-UN-19JAN00
H52708-UN-23MAR99
A - Quick-Lock Pins
B - Spring Latch
C - Separator Covers

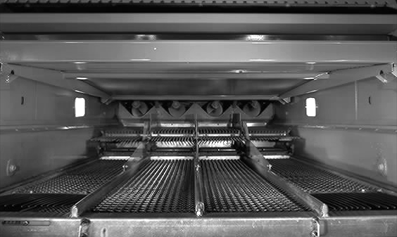

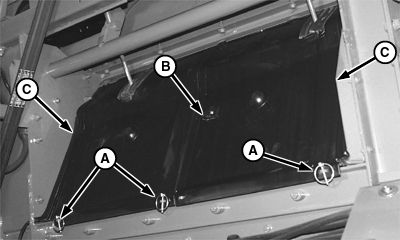

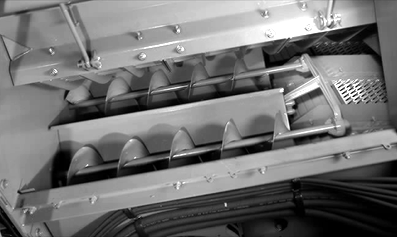

Remove quick-lock pins (A), spring latch (B) and separator covers (C). Use scraper to loosen material, and clean out through sides of machine.
H52709-UN-23MAR99
Non ProDrive Machines
H92039-UN-03JUN08
ProDrive Machines

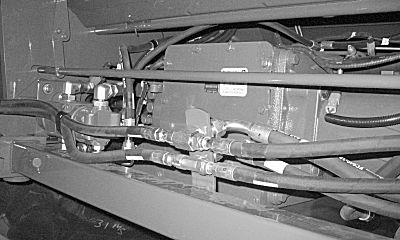

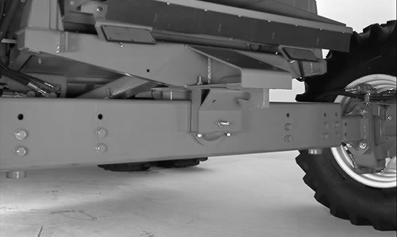

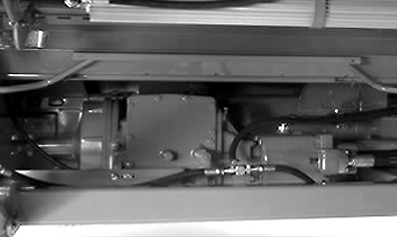

Clean off top of axle and transmission.
H52710-UN-23MAR99
H52711-UN-23MAR99
H62140-UN-14FEB00
H62141-UN-11JAN00
A - Quick-Lock Pins
B - Lock
C - Right-Hand Rear Shield
D - Middle Shield

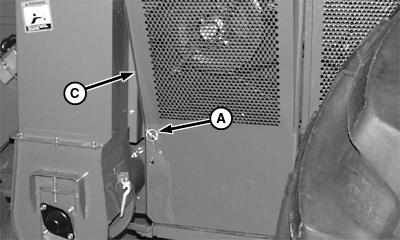

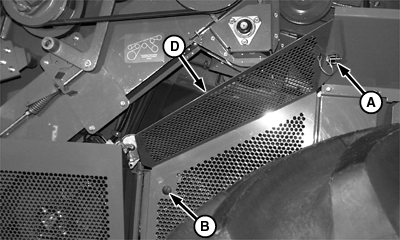

Remove quick lock pins (A) and turn lock (B) counterclockwise to unlock. Remove right-hand rear shield (C) and middle shield (D). Clean out fan area.
H65979-UN-29JAN01
A - Side Shields
B - Side Shields
C - Lock
D - Shield
Remove quick-lock pins and open left-hand side shields (A) and (B) and clean area.Turn lock (C) counterclockwise and remove shield (D).
H62234-UN-19JAN00
H69985-UN-13SEP01
A - Switch

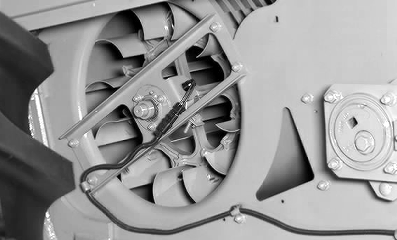

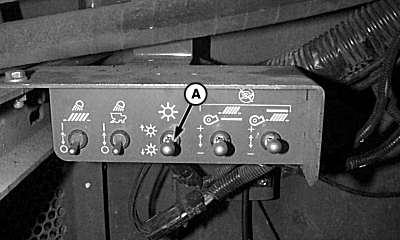

Raise chopper completely with switch (A).
H86569-UN-12SEP06
A - Wing Nut
B - Handle

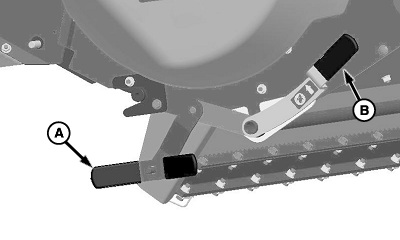

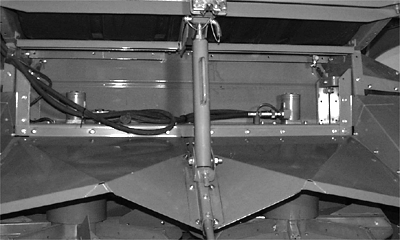

Loosen wing nut (A) and use handle (B) to disengage knifebank and clean chopper.
H62236-UN-19JAN00
