First 100 Hours

1. IMPORTANT:

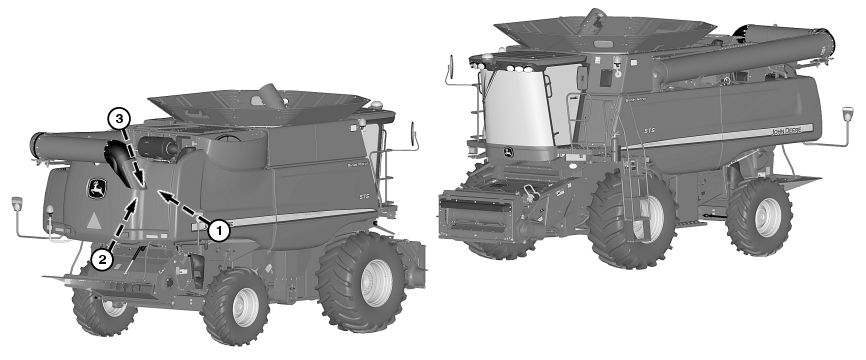

   H93392-UN-05FEB09


   H86835-UN-07NOV06


   H86836-UN-07NOV06

   A - Cap

   B - Drain

   C - Dipstick

   Change oil every 100 hours if fuel is more than 0.5 % sulfur.

   Fill crankcase with seasonal viscosity grade oil or Torq-Gard Supreme™ (250 hours change interval). If using Plus-50™ or Plus-50™ II oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

   Engine Crank Case Top Load Oil Filter - Remove cap (A) and remove filter. Replace filter and install cap. Tighten cap to specifications.

   Item	Measurement	Specification
   Oil Filter Cap	Torque	40 N•m (30 lb-ft)

---




2. Engine Crank Case Top Load Oil - Open drain (B) to remove oil.

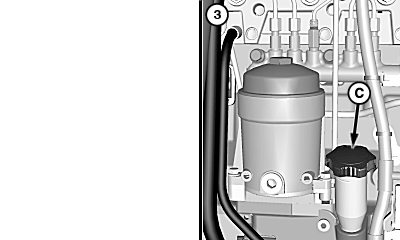

3. Engine Crank Case Top Load Oil - Remove dipstick (C) to fill and check oil level after filling.
