Armrest Console Controls

H90845-UN-20FEB08

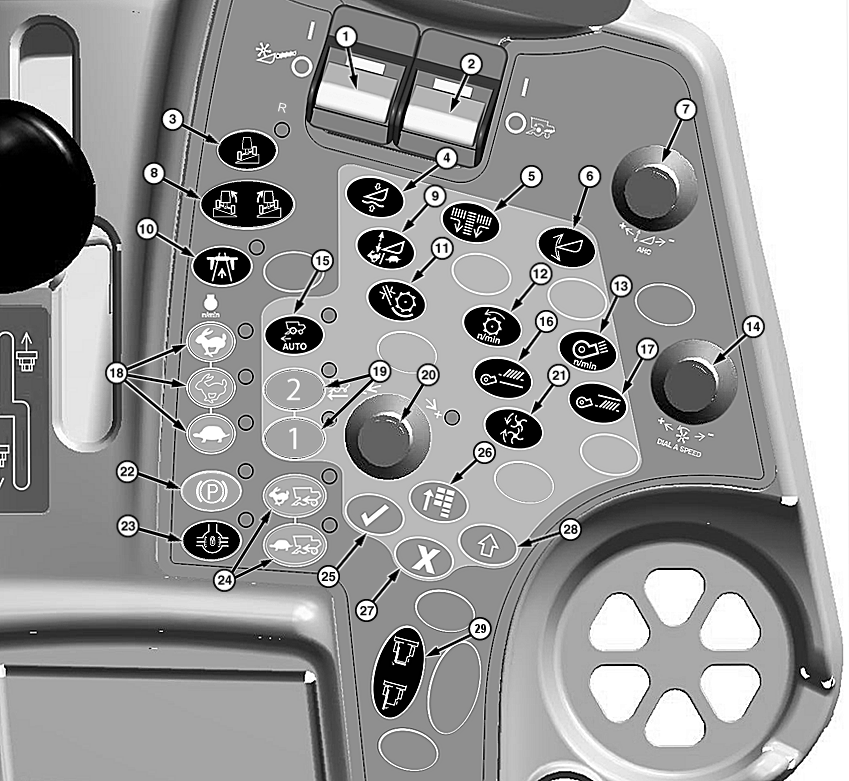

1 - Header Engage and Feeder House Reverser Switch

2 - Separator Engage Switch

3 - Automatic Self-Leveling Shoe Switch (Optional)

4 - Cutterbar Pressure Adjust Switch (600F Flex Platforms)

4 - Float Position Adjust Switch (600D Drapers)

5 - Draper Belt Speed Adjust Switch

6 - Draper Cutterbar Tilt Adjust Switch

7 - Header Height/HydraFlex™ Pressure Control Dial

8 - Manual Self-Leveling Shoe Switch (Optional)

9 - Feeder House Rate/Sensitivity Adjust Switch

10 - Road Transport Disconnect Switch

11 - Threshing Clearance Adjust Switch

12 - Threshing Speed Adjust Switch

13 - Cleaning Fan Speed Adjust Switch

14 - Dial-A-Speed™ Dial

15 - Harvest Smart™ Feed Rate Enable Switch (Optional)

16 - Chaffer Adjust Switch (Optional)

17 - Sieve Adjust Switch (Optional)

18 - Engine Speed Switches

19 - ProDrive Mode 1 and 2 Switches (ProDrive Machines)

20 - Selection Dial

21 - Spreader Speed Adjust Switch

22 - Park Brake Switch (ProDrive Machines)

23 - Not Used

24 - Four Wheel Drive Switches (Optional)

25 - Confirm Switch

26 - Main Menu Switch

27 - Cancel Switch

28 - Display Select Switch

29 - Folding Unloading Switch (Optional)
