Quick Stop Switch (Yellow)

CAUTION:

H85890
H85890-UN-10MAY06

H86974
H86974-UN-20NOV06

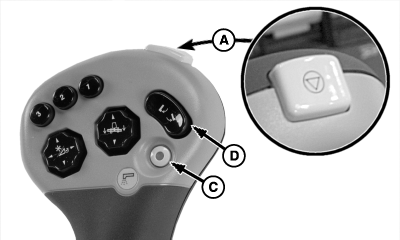

A - Quick Stop Switch

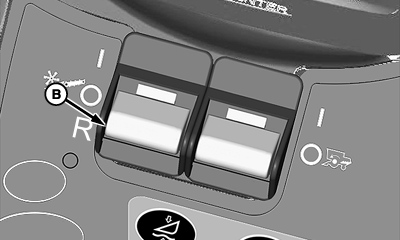

B - Header Engage Switch

C - Unloading Auger Switch

D - Unloading Auger Swing Switch

ProDrive Machines: Pressing quick stop switch with separator engaged causes machine to quickly stop. It is always recommended to wear your seat belt to avoid serious injury.

IMPORTANT: Header drive can be disengaged by this switch in case of malfunctions.

Quick stop switch (A) allows operator to simultaneously shut OFF the following at the same time in case of an emergency:

  • Header engage switch (B)
  • Unloading auger switch (C)
  • Unloading auger swing switch (D)
  • ProDrive (propulsion movement quickly stops)

Pushing unloading auger drive switch on multifunction control handle restarts the unloading auger drive. To engage header drive, turn header engage switch OFF and back ON.
