Mirror Heater Switch (Optional)
NOTE: Key switch must be ON or machine must be running to adjust mirrors.

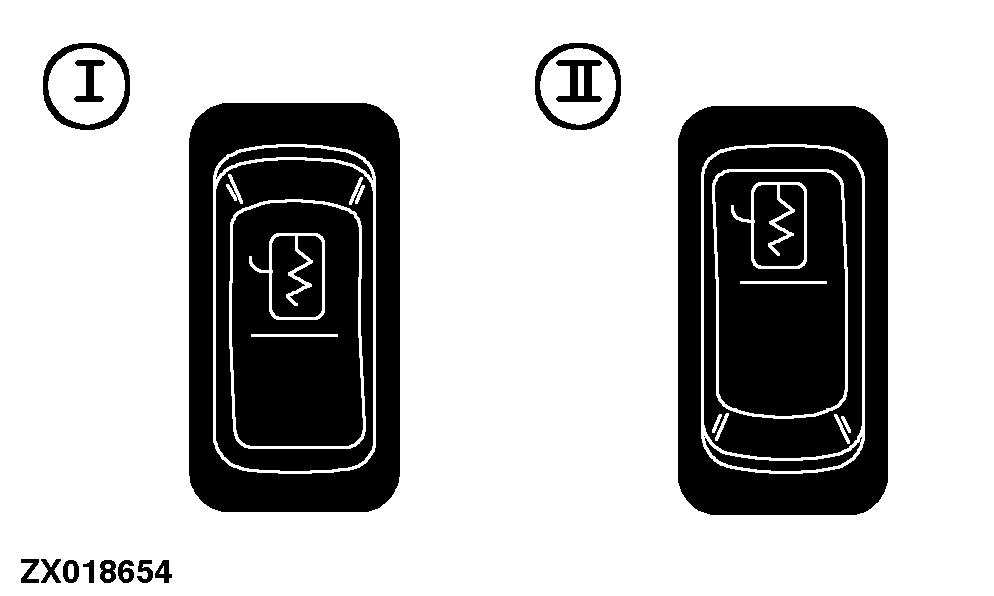

ZX018654-UN-04NOV99
I - Mirror Heater Switch (OFF)
II - Mirror Heater Switch (ON)
Mirrors are equipped with heaters to remove ice and fog. Mirror heater switch is a two position switch. Mirror heater switch (I) (bottom switch pressed in) shuts power OFF. Mirror heater switch (II) (top switch pressed in) heats mirrors.OUO6075,0000584-19-20070321 |
