Dial-A-Speed Dial (Black)
Reel Speed/Belt Pickup Speed Automatic Adjust
H86947-UN-20NOV06

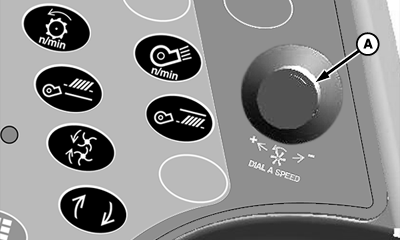

A - Dial-A-Speed Dial
Dial-A-Speed dial (A) will change speed of reel or belt pickup as determined by operator. Operating speed is a ratio of machine ground speed to reel or belt speed (see Dial-A-Speed System in CommandTouch Cab Cornerpost section).Turn dial towards plus (+) symbol to increase reel or belt pickup speed and setpoint or towards minus (-) symbol to decrease reel and belt pickup speed and setpoint.
Reel Speed/Belt Pickup Speed Manual Adjust
H90412-UN-17DEC07
H90413-UN-17DEC07

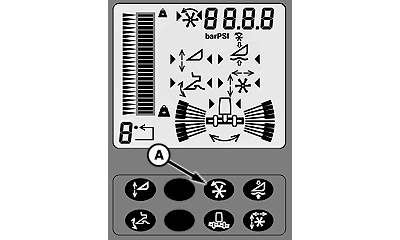

A - Dial-A-Speed Button
B - Dial-A-Speed Dial
Press Dial-A-Speed button (A) on display to disable automatic adjust system and to allow manual control. Turn Dial-A-Speed dial (B) to manually change speed of reel or belt pickup.Turn dial towards plus (+) symbol to increase reel or belt pickup speed or towards minus (-) symbol to decrease reel and belt pickup speed.
System is in manual mode when:
- Properly equipped header is connected to machine.
- Engine is running.
- Road transport disconnect switch is in field position.
- Header and separator are engaged.
- Dial-A-Speed is disabled or when machine speed is below 1/4 km/h (0.16 mph).
NOTE: Corn heads with reel attached in down corn will only run in manual mode.
