Draper Belt Speed Adjust Switch (Black) (Optional)

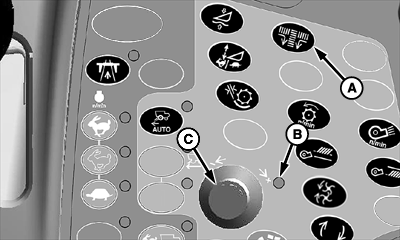

H87214
H87214-UN-16JAN07

A - Draper Belt Speed Adjust Switch

B - Indicator Light

C - Selection Dial

Draper belt speed adjust switch (A) will change speed of belt as determined by operator.

  1. Press draper belt speed adjust switch.

  2. Indicator light (B) will come on indicating setting can be adjusted.

  3. Turn selection dial (C) towards plus (+) symbol to increase belt speed or towards minus (-) symbol to decrease belt speed.

  4. CommandCenter display will show operator adjustment setting.
