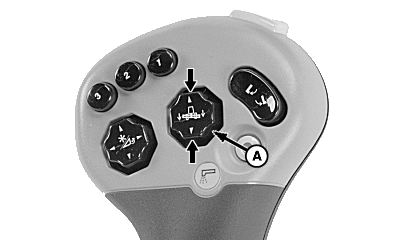

Header Raise/Lower Switch (Black)

H85895-UN-10MAY06

H86975-UN-20NOV06

A - Header Raise/Lower Switch

B - Road Transport Disconnect Switch

NOTE: Header raise/lower switch has two detent positions. Push part way in on switch will cause header to slowly raise or lower. Push all the way in will cause header to raise or lower at a faster rate.

System Requirements:

• Road transport disconnect switch (B) must be in field position.
• Operator must be seated.

Press and hold top of header raise/lower switch to raise header or press and hold bottom of header raise/lower switch to lower header.
