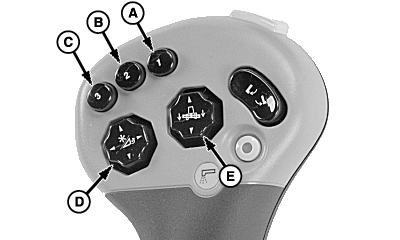

Header Activation Buttons (Black)

H85898
H85898-UN-10MAY06

A - Activation Button 1

B - Activation Button 2

C - Activation Button 3

D - Reel Lift/Reel Fore and Aft Switch

E - Header Raise/Lower and Contour-Master Manual Tilt Switch

When header activation buttons (A), (B) or (C) are pressed the following functions are performed:

  • Header Height Resume
  • Header Height Sensing
  • Contour-Master Control
  • Reel Position Resume
  • Active Header Float

The electronic control system will move the header back to preselected position chosen by the operator.

NOTE: Header positions obtained by pressing activation buttons may be overcome by pressing reel raise/lower or reel fore and aft switch (D) or header raise/lower and Contour-Master tilt switch (E). Once activation buttons are manually overcome, press desired activation button to reactivate.

System Requirements:

  • Properly equipped header is connected.
  • Engine is running.
  • Road transport disconnect switch must be in field position.
  • Header Height Resume, Header Height Sensing or Active Header Float mode are enabled.
  • Header is engaged.

Pressing header activation buttons activates system. Header control system will take control and move header to the operator selected position.
