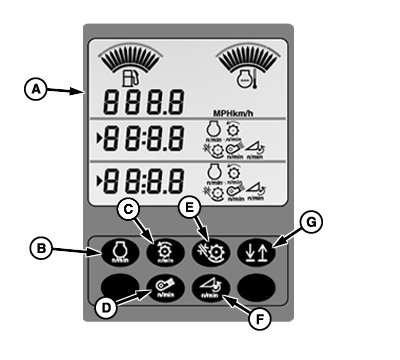

Triple Tachometer Display

H86003-UN-13DEC06

A - Triple Display Tachometer

B - Engine Speed Button

C - Threshing Speed Button

D - Fan Speed Button

E - Concave Clearance Button

F - Backshaft Speed Button

G - Up/Down Arrow Button (Display Line Select)

Threshing Speed Button (C): allows the operator to display the threshing speed.

Fan Speed Button (D): allows the operator to display the fan speed.

Concave Clearance Button (E): allows the operator to display the concave clearance.

Backshaft Speed Button (F): allows the operator to display the backshaft speed.

Up/Down Arrow Button (G): allows the operator to move the displayed setting from the current line to another line of choice.
