Emergency Exit

H52400
H52400-UN-22MAR99

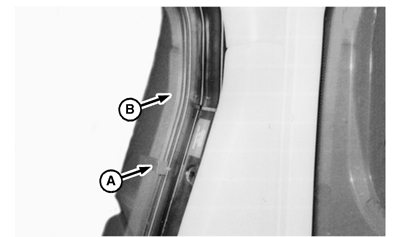

A - Tab

B - Rubber Rope

Pull tab (A) to begin removal of rubber rope (B).

Pull rope until removed from around window.

Window can now be pushed out and allowed to fall free. See your John Deere dealer for window replacement.
