Right-Hand Armrest and Control Console—Adjusting

H78811-UN-30OCT03

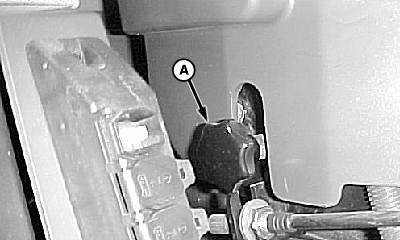

A - Knob

Knob (A) allows operator to adjust right-hand armrest control console. Loosen knob and slide armrest up/forward or down/back in slots on outer plate and tighten knob to lock armrest into position.
