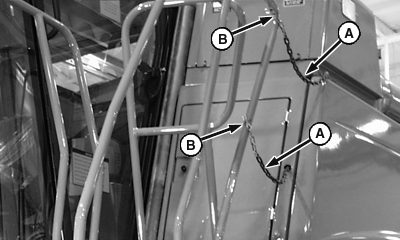

Cab Landing Safety Chains
H57079-UN-12MAY99
A - Chains
B - Pins
Safety chains (A) must be tight when ladder is in forward position. Remove pins (B) and adjust chains as needed.OUO6075,0000634-19-20070320 |
Cab Landing Safety Chains
A - Chains B - Pins Safety chains (A) must be tight when ladder is in forward position. Remove pins (B) and adjust chains as needed.
|
