Steering Column

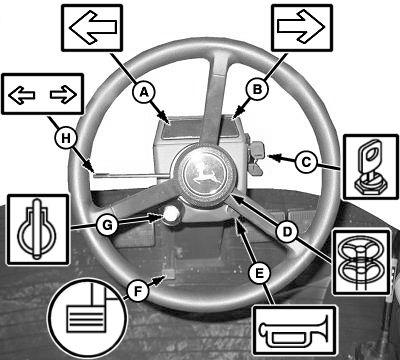

H85756-UN-27APR06

A - Left Turn Signal Indicator Light

B - Right Turn Signal Indicator Light

C - Starter Switch

D - Steering Column Vertical Adjustment

E - Horn

F - Steering Column Horizontal Adjustment

G - Ether Starting Aid Push Button

H - Turn Signal Switch

Right Turn Signal Indicator Light (B) shows the operator that a right turn is planned.

Starter Switch (C) allows key switch to be turned to:

First Position .............. OFF

Second Position .............. Accessories

Third Position .............. Run

Fourth Position .............. Start

CAUTION: Adjust steering wheel only when machine is stopped.

Steering Column Vertical Adjustment (D) allows operator to adjust steering column up or down.

Loosen hub and push or pull wheel to position. Slightly tighten hub to hold steering wheel in position.

Horn (E) allows operator to warn bystanders to stay clear.

CAUTION: Adjust column only when machine is stopped. Do not step on pedal without holding steering wheel.

Steering Column Horizontal Adjustment (F) allows operator to move steering column with pedal to desired location.

Press pedal to release lock on steering column and move column to desired position. Column locks when pedal is released.

NOTE: Ether starting aid will only work in “RUN” or “START” positions.

Ether Starting Aid Push Button (G) allows operator the ability to start engine in cold conditions.

Turn Signal Switch (H) allows operator to indicate left or right-hand turns.
