Break-In Check After 100 Hours

H82396
H82396-UN-09FEB05

H82397
H82397-UN-09FEB05

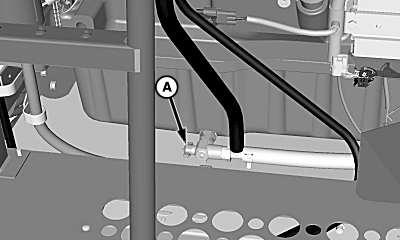

A - Drain

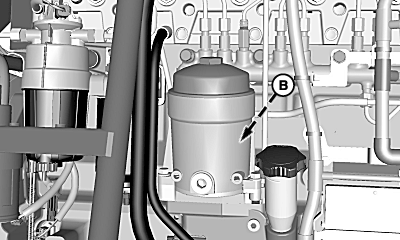

B - Oil Filter

Drain crankcase oil by opening drain (A) and close once oil is drained.

Remove and retain cap and dispose of oil filter (B) properly.

Install oil filter and retain with cap.

Fill crankcase with proper amount of engine oil, (see Diesel Engine Oil in Fuel And Lubricants section for oil specification).

IMPORTANT: If diesel fuel sulfur content exceeds 0.7 percent, change oil every 100 hours.

OUO6075,00006A4-19-20100317
