Rear Ladder and Landing

CAUTION: Shut OFF engine, set parking brake and remove key.

H82379
H82379-UN-07FEB05

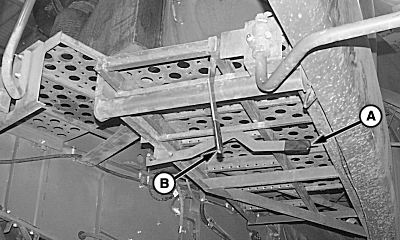

A - Handle

B - Handle

Push up on handle (A) and swing ladder out until door latches.

Use handle (B) to pull ladder rearward.

OUO6075,00006B6-19-20070315
