Water Separator Primary Fuel Filter—Draining

CAUTION: Shut OFF engine, set parking brake and remove key before performing maintenance work.

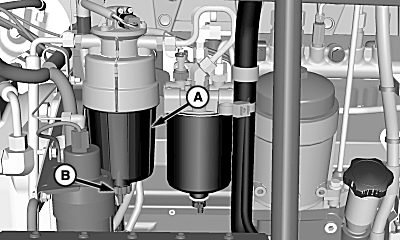

H85671
H85671-UN-05APR06

A - Primary Fuel Filter

B - Drain

When primary fuel filter (A) senses water in fuel system a diagnostic trouble code is generated.

If ECU 97.16 appears, drain primary filter using drain (B) and reset code.

OUO6075,00006BF-19-20071205
