Fuel System—Bleeding

CAUTION: Shut OFF engine, set parking brake and remove key before performing maintenance work.

H82403
H82403-UN-09FEB05

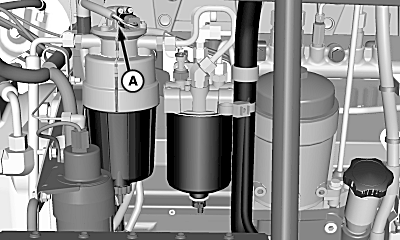

A - Fuel Pump

Air can enter fuel system when changing fuel filters or when machine is run out of fuel. Air in fuel system could prevent engine from starting. If engine does not start, turn key switch ON for 60 seconds to allow fuel pump (A) to prime fuel system.

OUO6075,00006C2-19-20070315
