Engine Accessory/Fan Drive Belt—Replacing

  1. CAUTION: Shut OFF engine, set parking brake and remove key.

    H82404
    H82404-UN-09FEB05

    A - Nut

    B - Rotary Screen Drive Belt

    Loosen nut (A) and remove rotary screen drive belt (B).

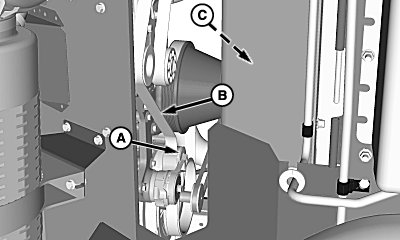

  2. H82405
    H82405-UN-09FEB05

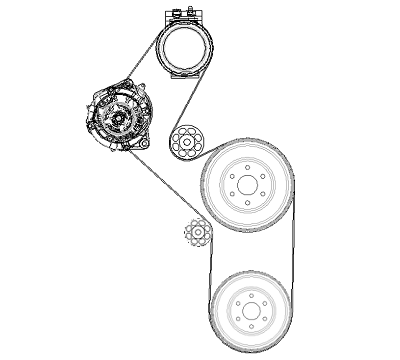

    H82477
    H82477-UN-17FEB05

    A - Tensioner Arm

    B - Belt

    C - Fan Blades

    Use breaker bar to relieve belt tension from tensioner arm (A).


  3. Remove belt (B) and work belt over fan blades (C) to remove.

  4. H82404
    H82404-UN-09FEB05

    A - Nut

    B - Belt

    Install belt (B) in reverse order.


  5. Tighten nut (A) until washer is positioned between end of gauge and bottom of step.

OUO6075,00006C7-19-20070315
