Cleaning Shoe Auger Gears—Cleanout Door (ProDrive Machines)

CAUTION:

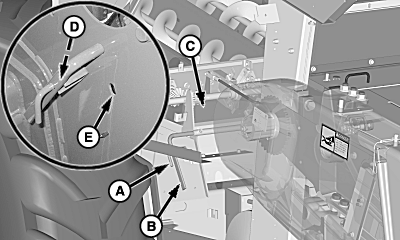

H95822-UN-24MAR10

A - Lock-Out Pin

B - Handle

C - Cleanout Door

D - Closed Position

E - Open Position

Allows operator to clean and inspect the cleaning shoe augers gear area.

Pull lock-out pin (A) and move handle (B) to open or close cleanout door (C).

Move handle to desired position:

• Closed Position (D)
• Open Position (E)
