Gull Wing Doors

  1. CAUTION:

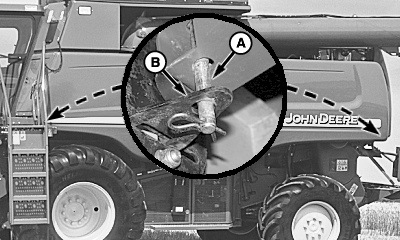

    H81656
    H81656-UN-13OCT04

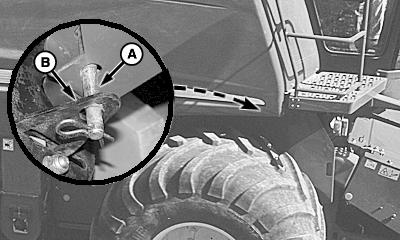

    H81657
    H81657-UN-13OCT04

    A - Pin

    B - Locking Plates

    Shut OFF engine, set parking brake and remove key.

    NOTE: Pinning and latch lever operation is the same on both sides of machine.

    Remove spring clip, and pin (A) from locking plate (B). Reinstall spring clip onto pin.

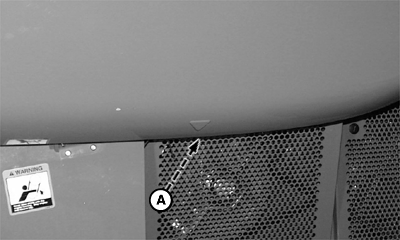

  2. H75701
    H75701-UN-17MAR03

    Right-Hand Door Latch

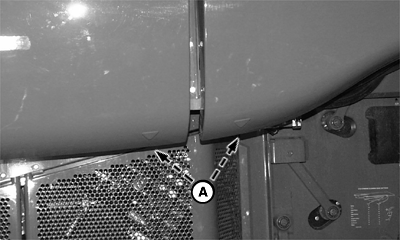

    H75702
    H75702-UN-17MAR03

    Left-Hand Door Latches

    A - Latch Levers

    Pull out on latch levers (A), then pull out on gull wing door to raise.


IMPORTANT:

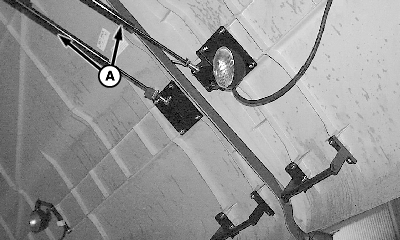

H76219
H76219-UN-29APR03

Left-hand Cylinder Stop Shown

A - Cylinders

Do not use cylinders (A) as hand holds or hang anything on these cylinders. This could cause the cylinder rod to bend or break.

In cold weather or in high winds, these gull wing doors may “creep” down. Position stop on rod to hold shield up.

OUO6075,0000738-19-20080627
