Left-Hand Side Shields CAUTION: Shut OFF engine, set parking brake and remove key.
 H74780-UN-14JAN03

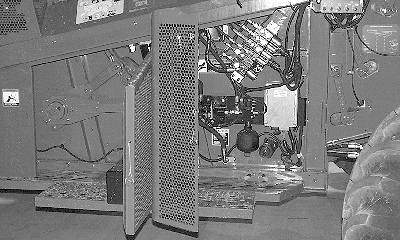

 H76803-UN-07MAY03

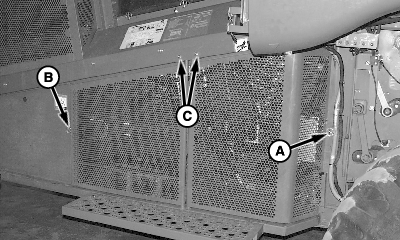

A - Quick-Lock Pin B - Quick-Lock Pin C - Cap Screws Side Shields— Remove quick-lock pin (A) and swing rear shield out.Remove quick-lock pin (B) and swing middle shield out. Remove cap screws (C) and lift shields completely to remove.  H58753-UN-14JUL99

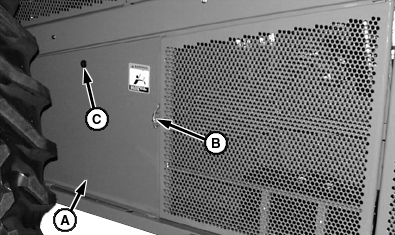

A - Fan Shield B - Quick-Lock Pin C - Lock Fan Shield— Remove fan shield (A) by removing quick-lock pin (B) and swing middle shield out.Turn lock (C) counterclockwise and remove fan shield.  H58754-UN-14JUL99

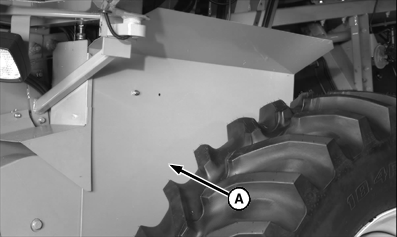

A - Quick-Lock Pin B - Shield Left-Hand Upper Separator Shield— Remove quick-lock pin (A), lift and remove shield (B). H52787-UN-16APR99
 H58755-UN-14JUL99
 H52788-UN-14JUL99

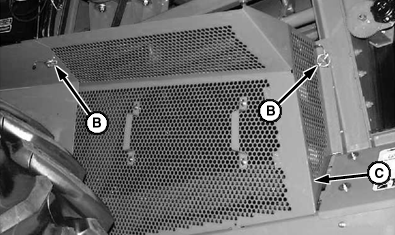

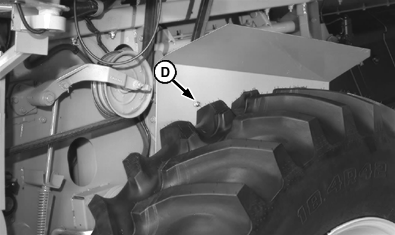

A - Front Shield B - Quick-Lock Pins C - Shield D - Cap Screw Left-Hand Front Separator Shield— Remove front shield (A) by removing quick-lock pins (B), lift and remove shield (C).Pull front shield rearward. Remove shield completely by removing cap screw (D) and pull shield out of support. | OUO6075,0000739-19-20070320 |
|
