Right-Hand Side Shields

CAUTION: Shut OFF engine, set parking brake and remove key.

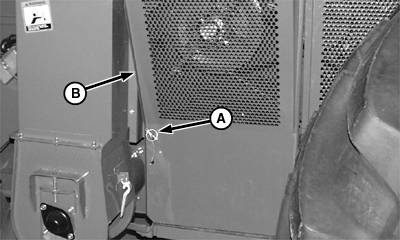

H62139
H62139-UN-11JAN00

A - Quick-Lock Pin

B - Rear Shield

Right-Hand Rear Shield— Remove quick-lock pin (A) and open rear shield (B) to service belts.

H62140
H62140-UN-14FEB00

H62141
H62141-UN-11JAN00

A - Quick-Lock Pin

B - Lock

C - Rear Shield

D - Middle Shield

Fan Shield— Remove quick-lock pins (A) and turn lock (B) counterclockwise to unlock.

Lift and remove rear shield (C) and middle shield (D).

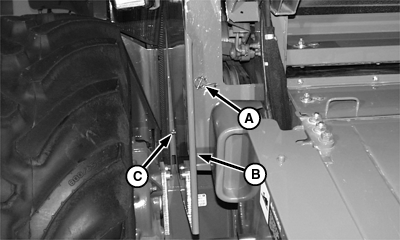

H62142
H62142-UN-11JAN00

A - Quick-Lock Pin

B - Shield

C - Cap Screw

Right-Hand Front Separator Shield— Remove quick-lock pin (A) and pull shield (B) forward.

Remove shield completely by removing cap screw (C) and lift to remove from lower support.

OUO6075,000073B-19-20070320
