Separator Covers

CAUTION: Shut OFF engine, set parking brake and remove key.

IMPORTANT: To prevent grain loss make sure separator covers are flush against separator and underneath the edge of separator. Covers are installed starting from the left-hand side, as facing the machine and working to the right.

Do not lay covers in the hot sun or they will become distorted.

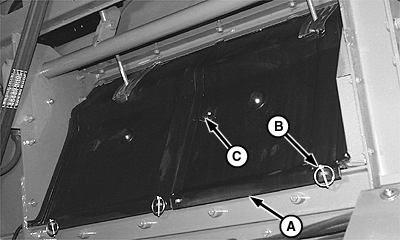

H62100
H62100-UN-20JAN00

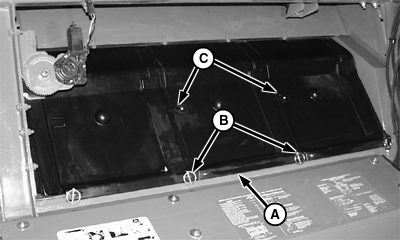

H62143
H62143-UN-11JAN00

A - Covers

B - Quick-Lock Pins

C - Spring Straps

Two covers (A) are used on each side of the machine to seal the threshing section. Three covers (A) on each side seal the separating section. Quick-lock pins (B) and spring straps (C) are used to retain covers.

Remove covers by removing quick-lock pins and raise spring straps. Pull shield out to clear retainer brackets.

OUO6075,000073D-19-20070320
