Standard Speed High Capacity Feed Accelerator—Changing

NOTE: When changing separator speeds make sure to cycle power ON and OFF. Combine will now recognize the new speed range.

H74782
H74782-UN-14JAN03

H86423
H86423-UN-28JUL06

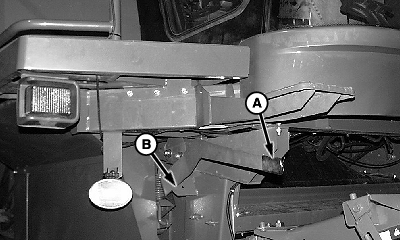

A - Lever

B - Notch in Bracket

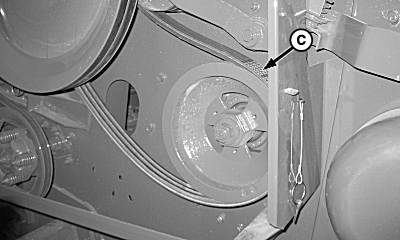

C - Belt

To change feed accelerator speed to high speed position:

  • Remove belt tension by pushing lever (A) up and out from notch in bracket (B).
  • Move belt (C) to inside sheave grooves on both sheaves for high speed.
  • Push lever up and into notch in bracket to reset belt tension.

OUO6075,0000747-19-20070716
