Every 200 Hours

1.
   H96169-UN-23APR10


   H86787-UN-06NOV06


   H96170-UN-23APR10

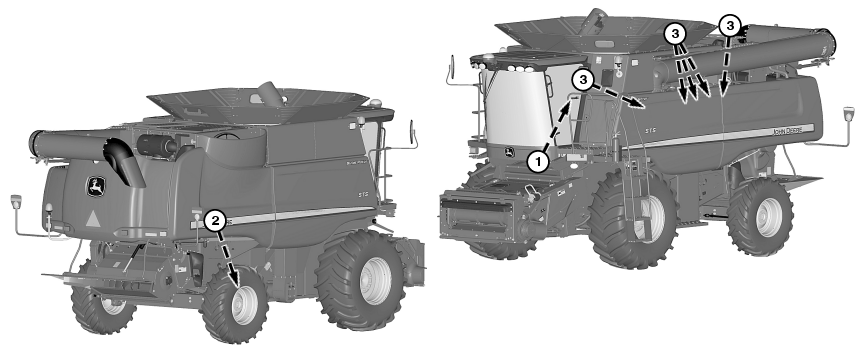

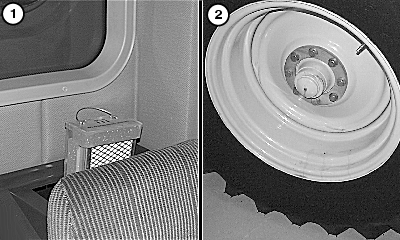

   Recirculating Filter - Remove tray and remove filter from inside of housing. Clean or replace filter. Check to be certain air flow arrow points toward front of machine.

---




2. Tire pressure and Bolt Torque - Check front and rear tire pressure and wheel bolt torque (see Ground Drive and Rear Axle section).

3. NOTE: Machines not equipped with multi-speed feeder house drive have one grease fitting.

   Primary Countershaft (Multi-Speed Feeder House) Rotate to access five fittings and grease.
