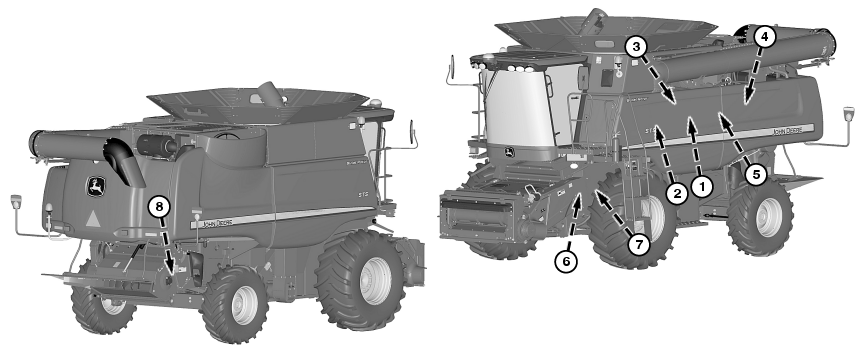

Every 400 Hours

H96168
H96168-UN-23APR10

H86791
H86791-UN-04APR07

H87955
H87955-UN-17DEC07

H86874
H86874-UN-17DEC07

H86875
H86875-UN-17DEC07

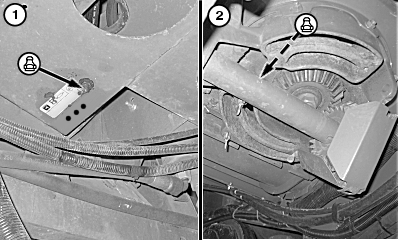

  1. Unloading Auger Upper Gearcase - Grease fitting.

  2. Unloading Auger Lower Gearcase Bearing - Grease fitting.

  3. NOTE: Machines equipped with multi-speed feeder house drive have five grease fittings.

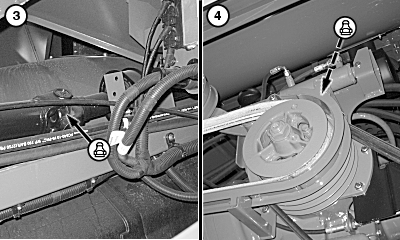

    Primary Countershaft Universal Joint (Non Multi-Speed Feeder House) Rotate to access fitting and grease.

  4. Chopper/Unloading Driveshaft Bearing - Rotate sheave to access fitting on bottom of sheave groove and grease fitting.

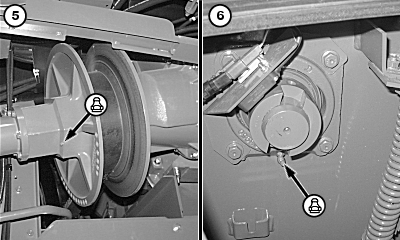

  5. IMPORTANT: Remove pipe plug and install grease fitting. Pump 40 to 45 shots of grease into fitting. DO NOT OVER GREASE. Remove grease fitting and reinstall pipe plug.

    Variable Speed Driver Sheave - Close sheaves (high speed) before greasing at pipe plug in outer sheave hub. Rotate sheave for pipe plug access. Cycle cylinder speed to distribute grease if operated at high speed all the time.

  6. Feed Accelerator Bearing (Left Side) - Grease fitting.

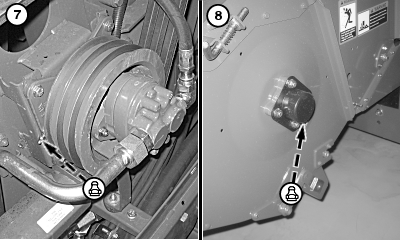

  7. Header/Reel Drive Pump Sheave Bearing - Grease fitting.

  8. Chopper Rotor Bearings - Grease fitting (both sides).
