Discharge Beater—Wing Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

NOTE: Beater wings can be reversed for additional wear.

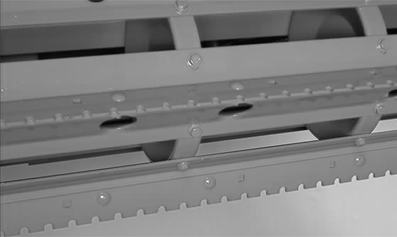

H54675-UN-13MAY99

Remove cap screws from wing and remove wing. Three wings are attached with cap screws and three wings are attached with cap screws, nuts and washers.

Replace wing and tighten nuts or cap screws to specification.

Remove and replace wear strips as required. Tighten cap screws to specification.

Item	Measurement	Specification
Cap Screws	Torque	70 N˙m (52 lb-ft)
