Cleaning Shoe Auger Gears—Adjusting

CAUTION: Raise feeder house, shut OFF engine, set parking brake, remove key and lower safety stop.

H54518
H54518-UN-22JUN99

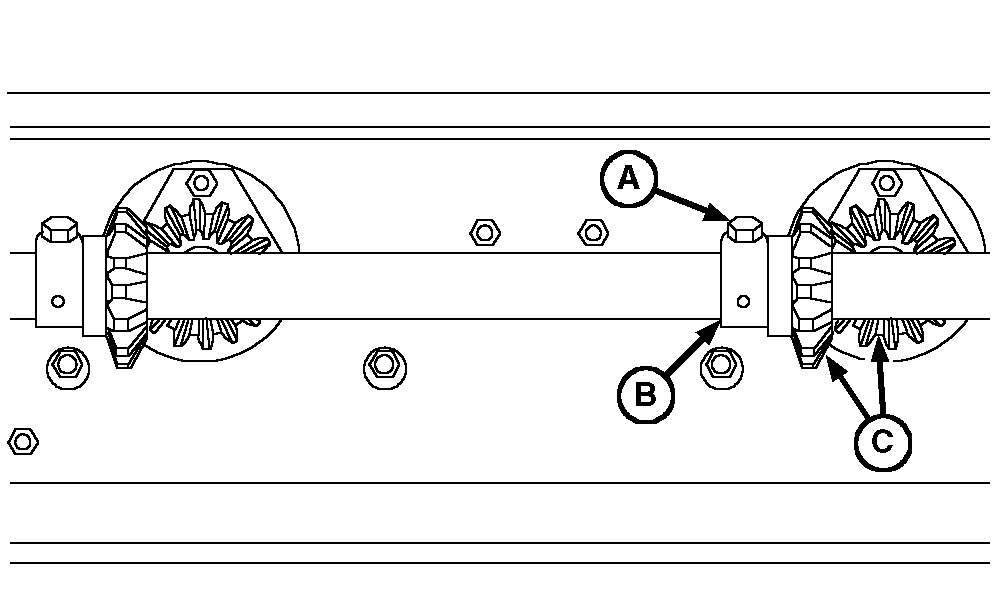

A - Nut

B - Clamp

C - Gears

Loosen nut (A) on clamp (B) and adjust gears (C) until they touch.

Back clamp off 0.8 mm (1/32 in.) and tighten nut. Do not run gears too tight.
